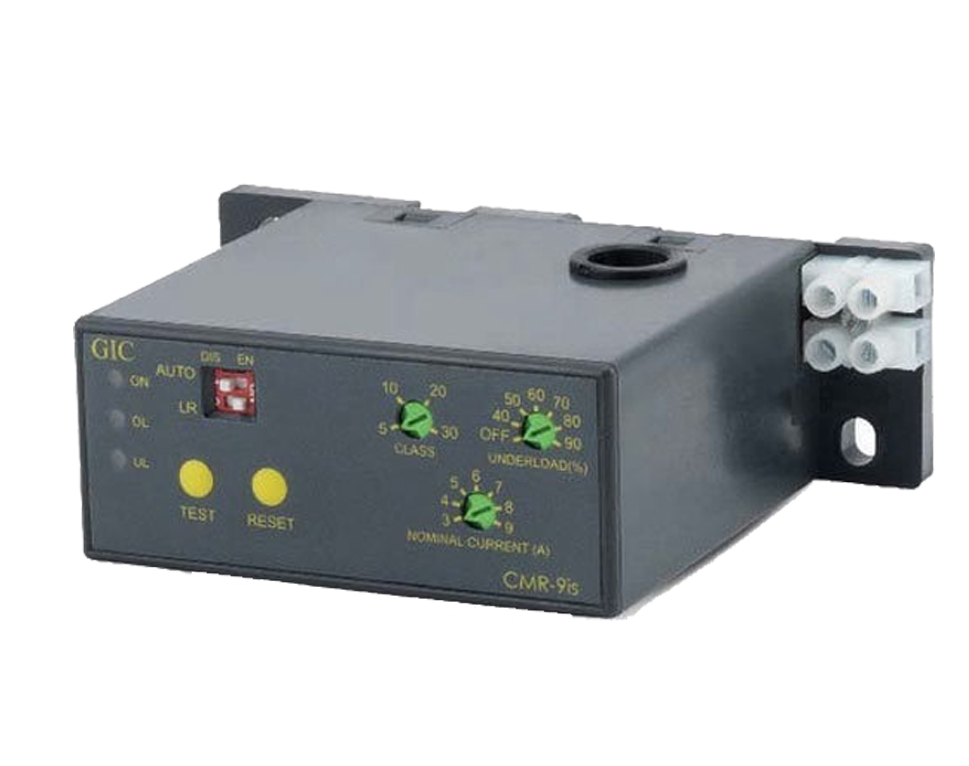

Cat. No.							17C112EB0
Parameters
Supply Voltage							110 - 240 VAC
Supply Variation							-20% to +10%
Frequency							50 / 60 Hz
Power Consumption (Max.)							5 VA
		Trip Type					Inverse Time
		Tripping Class					5, 10, 20, 30
Trip Settings		Current Ranges					3-9A
		Thermal Memory					Yes
	Underload						40% to 90%
		Locked Rotor Protection					400% of the set value
Number of In-Built CT?s							1
Reset Mode							Auto, Manual
Test Function							Yes
Time		Start Time					N A
		Delay Time					As per trip class
Delay		Auto Reset Time					3-15 min (As per trip class)
		ON Delay					60 ms to 700 ms
Setting Accuracy							± 5%
Repeat Accuracy							± 2%
		Relay Output					1 C/O
Output		Contact Rating					5A @ 240 VAC (Resistive)
		Electrical Life					1 x 105
		Mechanical Life					1 x 107
Utilization	Category				AC-15		Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3.0/1.5 A
LED Indications							ON: Power ON, UL: Underload, OL: Overload
Operating Temperature							- 10o C to +60o C
Storage Temperature							- 25o C to +70o C
Humidity (Non Condensing)							95% (Rh)
Enclosure							Flame Retardant UL94-V0
Dimension (W x H x D) (in mm)							110 X 36.5 X 76.8
Weight (unpacked) Approx.							210 g
Mounting							Base Mounting
Certification
Degree of Protection							IP 20 for Enclosure

EMI / EMC
Harmonic Current Emissions						IEC 61000-3-2
ESD						IEC 61000-4-2
Radiated Susceptibility						IEC 61000-4-3
Electrical Fast Transients						IEC 61000-4-4
Surges						IEC 61000-4-5
Conducted Susceptibility						IEC 61000-4-6
Voltage Dips & Interruptions (AC)						IEC 61000-4-11
Conducted Emission						CISPR 14-1
Radiated Emission						CISPR 14-1
Environmental
Cold Heat						IEC 60068-2-1
Dry Heat						IEC 60068-2-2
Vibration						IEC 60068-2-6
Repetitive Shock						IEC 60068-2-27
Non-Repetitive Shock						IEC 60068-2-27

---

---

---
