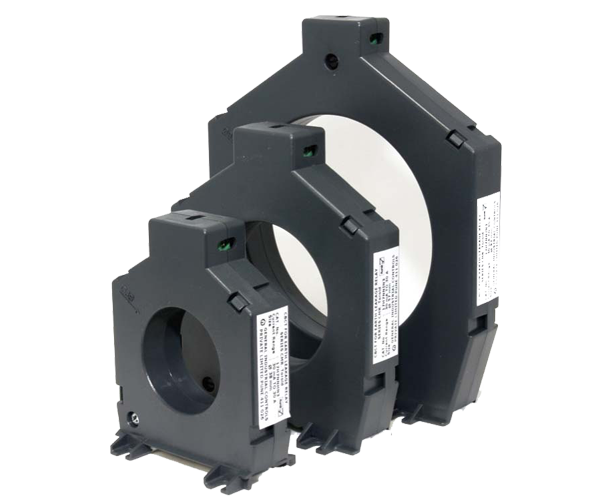

CBCT 92mm, 30 mA - 30 A
|
Item Name: CBCT 92mm, 30 mA - 30 A
SKU 1: 17H7NNJN3
SKU 2: 0
|
|
•Flush Mounting Version 96x96 mm with Digital Seven Segment Display
•Monitors, Detects and Protects Power systems from Earth Leakage Fault (Type 'A' & 'AC')
•Wide range of selectable Earth Leakage Current: 30 mA - 30 A
•Configurable Earth Leakage Trip time: 0 - 10 s
•Wide Auxiliary Supply Range:
110 - 240 VAC / DC
•Nano Crystaline CBCT measures the leakage current to the highest accuracy
•Instantaneous Trip for 5 times of set value of Leakage current
•Test feature to check complete product functionality
•LED Indication for Relay Status,Earth Leakage Fault & Alarm Condition
•Manual / Remote Reset feature
•Continuous Scrolling display for Set Current and Set time
•1 C/O (Alarm Relay) + 1 C/O ( Fault Relay)
•RS 485 Communication
| CBCT |
SIZE |
WEIGHT (in gms) |
A |
B |
C |
D |
E |
| 17H7NNJN3 |
92 |
250 |
20 |
132 |
155 |
27 |
73 |
Available In Stock
