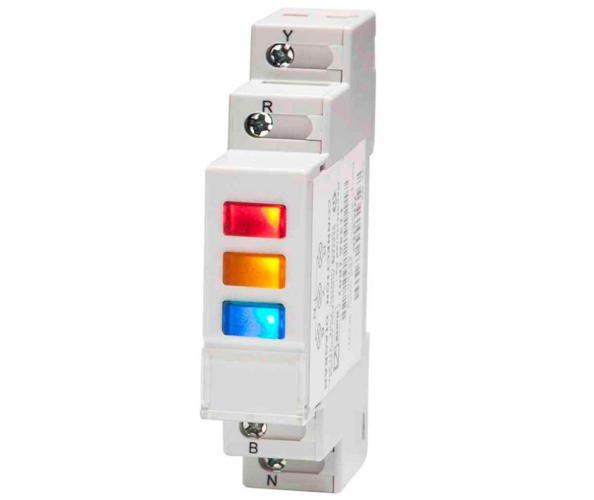

Cat. No.

MM3ND

Parameters

Supply Voltage

240 VAC

Supply Variation

-25 to +10%

Frequency

50/60Hz

Power Consumption (Max.)

1.8 W

Number of Indications

3

Red

R Phase

LED Colour

Yellow

Y Phase

Blue

B Phase

LED Type

Through Hole (Water Clear)

LED Size

3mm

Operating Temperature

- 15o C to +60o C

Storage Temperature

- 25o C to +80o C

Humidity (Non Condensing)

95% (Rh)

Enclosure

Flame Retardant UL94-V0

Dimension (W x H x D) (in mm)

17.5 X 90 X 65

Weight (unpacked)

75 g

Mounting

DIN rail

Certification

Degree of Protection

IP 20 for Terminals, IP 30 for Enclosure, IP 40 for Front side

EMI / EMC
Harmonic Current Emissions			IEC 61000-3-2
ESD			IEC 61000-4-2
Radiated Susceptibility			IEC 61000-4-3
Electrical Fast Transients			IEC 61000-4-4
Surges			IEC 61000-4-5
Conducted Susceptibility			IEC 61000-4-6
Voltage Dips & Interruptions (AC)			IEC 61000-4-11
Conducted Emission			CISPR 14-1
Radiated Emission			CISPR 14-1
Environmental
Cold Heat			IEC 60068-2-1
Dry Heat			IEC 60068-2-2
Vibration			IEC 60068-2-6
Repetitive Shock			IEC 60068-2-27
Non-Repetitive Shock			IEC 60068-2-27

---

---

---
