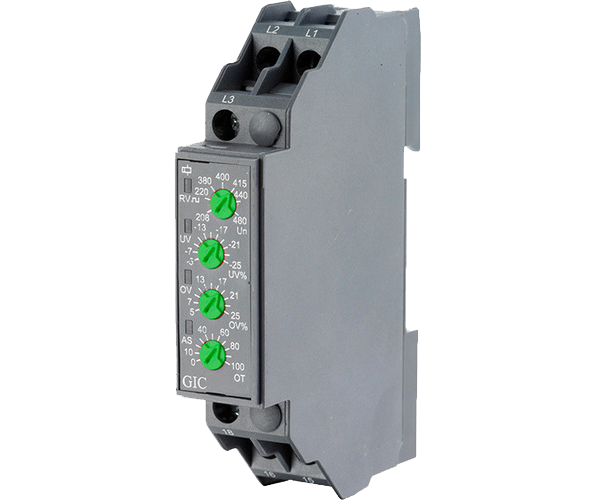

Cat. No.			MN21D5
Parameters
Supply Voltage			208 - 480 VAC, (3 Phase 3 Wire)
Supply Variation			-12% to + 10%
Frequency			50/60 Hz
Power Consumption (Max.)			3.5 VA
Trip	Phase Loss		Yes
	Phase Sequence		N A
Levels
	Phase Asymmetry		N A
Time	ON Delay
Delay	Trip Time (OFF Delay)
	Relay Output		1 C/O
Output	Contact Rating		5A @ 250 VAC / 30 VDC (Resistive)
	Electrical Life		1X105
	Mechanical Life		3X106
Utilization Category		AC-15	Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3.0/1.5 A
		DC-13	Rated Voltage (Ue): 24/125/250 V, Rated Current (Ie): 2.0/0.22/0.1 A
		Healthy	Relay LED Continuous ON
LED Indication		Phase Reverse	N A
		Asymmetry	Relay LED Off (Red Colour)
Operating Temperature			- 15o C to +60o C
Storage Temperature			- 20o C to +80o C
Humidity (Non Condensing)			95% (Rh)
Enclosure			Flame Retardant UL 94-V0
Dimension (W x H x D) (in mm)			17.5 X 90 X 58.5
Weight (unpacked)			70 g
Mounting			Base / DIN rail
Degree of Protection			IP 20 for Terminal, IP 30 for Enclosure
Certification

EMI / EMC
Harmonic Current Emissions	IEC 61000-3-2
ESD	IEC 61000-4-2
Radiated Susceptibility	IEC 61000-4-3
Electrical Fast Transients	IEC 61000-4-4
Surges	IEC 61000-4-5
Conducted Susceptibility	IEC 61000-4-6
Voltage Dips & Interruptions (AC)	IEC 61000-4-11
Conducted Emission	CISPR 14-1
Radiated Emission	CISPR 14-1
Environmental
Cold Heat	IEC 60068-2-1
Dry Heat	IEC 60068-2-2
Vibration	IEC 60068-2-6
Repetitive Shock	IEC 60068-2-27
Non-Repetitive Shock	IEC 60068-2-27

---

---

---
