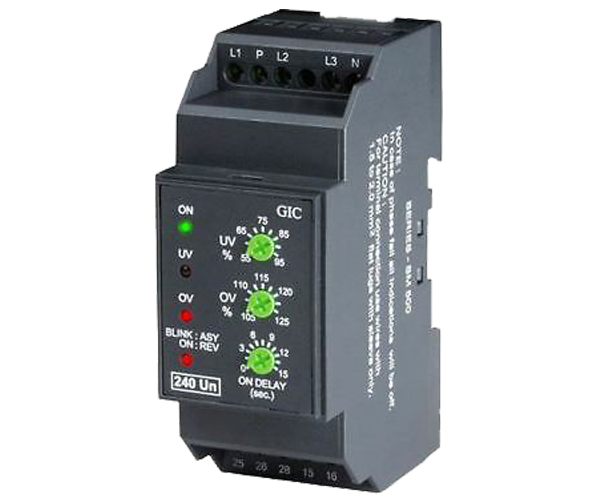

Cat. No.

MAC04D0100

Parameters

Supply Voltage

415 VAC (Ph-Ph); 3 Phase, 4 Wire

Frequency

47 to 53 Hz

Power Consumption (Max.)

10 VA (max)

Phase Loss

Yes

Trip Settings

Phase Sequence

Yes

Phase Asymmetry

94V ± 4V (Ph-Ph)

Under Voltage

55% to 95%

Over Voltage

105% to 125%

Hysterisis

7V(±2V)

ON Delay

5 s ±1 s (Fixed)

Time Delay

Trip Time

For Phase failure phase Imbalance

5 s ±1 s (Fixed)

Under voltage / Over Voltage

(OFF Delay)

For Neutral Fail

500 ms -1s

Relay Output

2 C/O

Output

Contact Rating

5A @ 250 VAC / 28 VDC (Resistive)

Electrical Life

1X105

Mechanical Life

1X107

Utilization Category

AC-15

Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3.0/1.5 A

DC-13

Rated Voltage (Ue): 24/125/250 V, Rated Current (Ie): 2.0/0.22/0.1 A

Respective fault condition will be indicated by LED immediately & Relay will be tripped

after specified trip time only.

GREEN

UV

OV

Blink: ASY, ON: REV

Power ON

LED Indications on front plate

ON

OFF

OFF

OFF

Phase reverse

ON

OFF

OFF

ON

Asymmetry

ON

OFF

OFF

BLINK

UV

ON

ON

OFF

OFF

OV

ON

OFF

ON

OFF

Phase Fail

BLINK

OFF

OFF

OFF

Phase Fail *

BLINK

ON

OFF

BLINK

Neutral Fail

ON

BLINK

BLINK

BLINK

EMI / EMC
Harmonic Current Emissions	IEC 61000-3-2
ESD	IEC 61000-4-2
Radiated Susceptibility	IEC 61000-4-3
Electrical Fast Transients	IEC 61000-4-4
Surges	IEC 61000-4-5
Conducted Susceptibility	IEC 61000-4-6
Voltage Dips & Interruptions (AC)	IEC 61000-4-11
Conducted Emission	CISPR 14-1
Radiated Emission	CISPR 14-1
Environmental
Cold Heat	IEC 60068-2-1
Dry Heat	IEC 60068-2-2
Vibration	IEC 60068-2-6
Repetitive Shock	IEC 60068-2-27
Non-Repetitive Shock	IEC 60068-2-27

---

---

---
