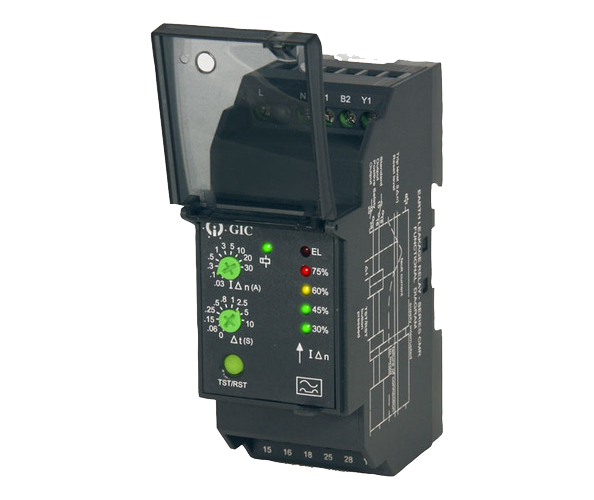

Cat. No.
|
|
17G715GF2
|
|
|
|
|
|
Parameters
|
|
|
|
|
|
|
|
|
|
|
|
Supply Voltage
|
|
|
|
|
110-240VAC/DC
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Supply Variation
|
|
-20 to +10%
|
|
|
|
|
|
Frequency
|
|
|
|
|
|
50/60Hz
|
|
|
|
|
|
Power Consumption (Max.)
|
|
5 VA
|
|
|
|
|
|
|
Leakage Current Range (I n)
|
|
30 mA to 30 A
|
|
|
|
|
|
Threshold
|
|
For '17G7' Devices
|
|
0.03-0.1-0.3-0.5-1-3-5-10-20-30
|
|
|
I n (A)
|
|
For '17G8' Devices
|
|
0.03-0.05-0.1-0.3-0.5-0.75-1-3-5-10
|
|
|
Type Class
|
|
|
|
|
|
'A' True RMS measurement (As per IEC 60947-2 appendix M) up to I N= 3A
|
|
Max. Crest Factor
|
|
5 (for 30 mA to 30 A)
|
|
|
|
Reset Mode
|
|
|
|
|
|
Manual Reset
|
|
|
|
|
|
|
No. of Resets
|
|
N A
|
|
|
|
|
|
|
|
|
Clear Auto Reset
|
|
After 1 hour of healthy condition or supply interruption
|
|
Reset Enable & Reset Time
|
|
Below 50% of set current threshold in presence of CBCT
|
|
Trip Time (
|
t in sec)
|
|
0-0.06-0.15-0.25-0.5-0.8-1-2.5-5-10
|
|
|
Test / Reset
|
|
|
|
|
|
Local & Remote (Non Potential free contacts, upto 10 m)
|
|
Setting Accuracy
|
|
-20% (Including CBCT Accuracy)
|
|
Repeat Accuracy
|
|
± 2%
|
|
|
|
|
|
|
Relay Output
|
|
1C/O+1NO
|
|
|
|
|
|
Output
|
Contact Rating
|
|
5A (Resistive) @ 240 VAC / 30 VDC
|
|
Electrical Life
|
|
1 x 105
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Mechanical Life
|
|
1 x 107
|
|
|
|
|
|
Utilization Category
|
AC-15
|
|
Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3.0/1.5 A
|
|
DC-13
|
|
Rated Voltage (Ue): 24/125/250 V, Rated Current (Ie): 2.0/0.22/0.1 A
|
|
|
|
|
|
|
|
|
|
|
LED
|
|
Power
|
|
Green LED (ON)
|
|
|
|
|
|
|
EL/CT
|
|
Red LED (ON)
|
Relay Trip / Red LED (Blinking)
|
|
Indication
|
|
|
|
|
Leakage Current / TST
|
|
By Bar Graph: 30% (Green), 45% (Green), 60% (Yellow), 75% (Red), Blink Test / Reset Switch is pressed
|
|
|
|
|
|
|
Operating Temperature
|
|
- 15o C to +60o C
|
|
|
|
|
|
Storage Temperature
|
|
- 25o C to +80o C
|
|
|
|
|
|
Humidity (Non Condensing)
|
|
95% (Rh)
|
|
|
|
|
|
Enclosure
|
|
|
|
|
|
Flame Retardant UL94-V0
|
|
|
|
Dimension (W x H x D) (in mm)
|
|
36X90X65
|
|
|
|
|
|
Weight (unpacked) Approx.
|
|
150 g
|
|
|
|
|
|
Mounting
|
|
|
|
|
|
Base / DIN rail
|
|
|
|
|
|
Certification
|
|
|
|
|
|
.png)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Degree of Protection
|
|
IP 20 for Terminals, IP 40 for Enclosure
|
