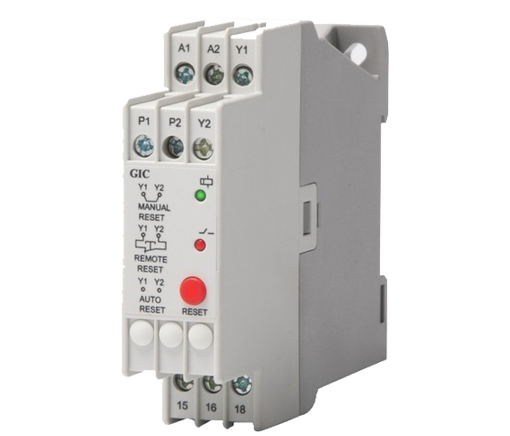

Cat. No.					MJ91BK
Parameters
Supply Voltage					220 - 240 VAC
Supply Variation					-20% to + 10%
Frequency					48 to 62 Hz
Power Consumption (Max.)					4 VA
Trip Settings	Trip Level				2.7  (± 5%)
	Reset Level				1.71  (± 5%)
	Sensor Short				(± )
	Sensor Open				> 20  (± 5%)
	Max Cold Res( ) of Sensor Chain
Reset Mode					Auto, Manual, Remote
Repeat Accuracy					1%
Time Delay	ON Delay				500 ms
	OFF Delay				100 ms
	Reset Time				150 ms
Output	Relay Output				2 C/O
	Contact Rating				5A (Resistive) @ 250 VAC / 28 VDC
	Electrical Life				1 x 105
	Mechanical Life				3 x 106
Utilization Category				AC - 15	Rated Voltage (Ue): 120/240 V, Rated Current (le): 3.0/1.5 A
				DC - 13	Rated Voltage (Ue): 24/125/250 V, Rated Current (le): 2.0/0.22/0.1 A
LED lndications		Green LED			Continuous ON	Healthy Flashing		Sensor Open
		Red LED			Continuous ON	Relay ON Flashing		Sensor Short
		All LEDs OFF			Power Supply Fail
Operating Temperature Storage Temperature					- 15o C to +60o C - 25o C to +80o C
Humidity (Non Condensing)					95% (Rh)
Enclosure					Flame Retardant UL94-V0
Dimension (W x H x D) (in mm)					22.5 X 83 X 100.5
Weight (unpacked)					120 g
Mounting					Base / DIN rail
Certification
Degree of Protection					lP 20 for Terminals, lP 40 for Enclosure

EMI I EMC
Harmonic Current Emissions	lEC 61000-3-2 ESD
Radiated Susceptibility	lEC 61000-4-3
Electrical Fast Transients	lEC 61000-4-4
Surges	lEC 61000-4-5
Conducted Susceptibility	lEC 61000-4-6 Voltage Dips & lnterruptions (AC) lEC 61000-4-11 Voltage Dips & lnterruptions (DC) lEC 61000-4-29 Conducted Emission
Radiated Emission	ClSPR 14-1
Environmental
Cold Heat	lEC 60068-2-1
Dry Heat	lEC 60068-2-2
Vibration	lEC 60068-2-6
Repetitive Shock	lEC 60068-2-27
Non-Repetitive Shock	lEC 60068-2-27

---

---

---
