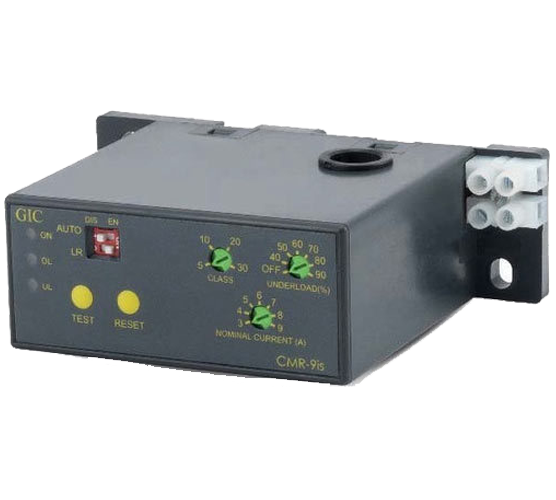

Cat. No.			17C312EB0
Parameters
Supply Voltage			110 - 240 VAC
Supply Variation			-20% to +10% of
Frequency			50 / 60 Hz
Power Consumption (Max.)			5 VA
Trip Settings	Trip Type		Inverse Time
	Tripping Class		5, 10, 20, 30
	Current Ranges		3 - 9 A
	Thermal Memory		Yes
	Underload		40% to 90%
	Locked Rotor Protection		400% of the set value
Number of In-Built CTs			1
Reset Mode			Auto, Manual
Test Function			Yes
Time Delay	Start Time		N A
	Delay Time		As per trip class
	Auto Reset Time		3-15 min (As per trip class)
	ON Delay		60 ms to 700 ms
Setting Accuracy			± 5%
Repeat Accuracy			± 2%
Output	Relay Output		1 C/O
	Contact Rating		5A @ 240 VAC (Resistive)
	Electrical Life		1 x 105
	Mechanical Life		1 x 107
Utilization Category		AC - 15	Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3.0/1.5 A
LED Indications			ON: Power ON, UL: Underload, OL: Overload
Operating Temperature Storage Temperature			- 10o C to +60o C - 25o C to +70o C
Humidity (Non Condensing)			95% (Rh)
Enclosure			Flame Retardant UL94-V0
Dimension (W x H x D) (in mm)			110 X 36.5 X 76.8
Weight (unpacked) Approx.			210 g
Mounting			Base Mounting
Certification
Degree of Protection			IP 20 for Enclosure

---

---

---
