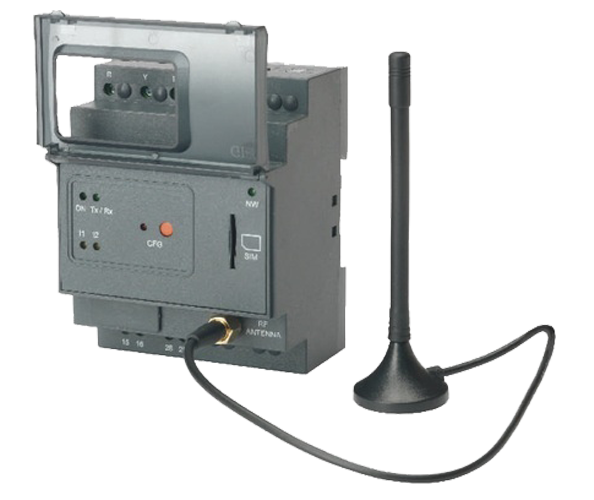

GSM controllers 180-500 VAC
|
Item Name: GSM controllers 180-500 VAC
SKU 1: 26A11AV
SKU 2: 0
|
|
•Load can be made ON / OFF using mobile phone from remote location either by making an IVRS call, missed call or sending SMS to the device
•Device is suitable for Single Phase and Three Phase supply
•Device is compatible with SASD, FASD & DOL starters and controllers
•One Master and two other Master or Monitor numbers can be configured to control and monitor the Load operation
•Load can be operated in Manual Mode,GSM Auto Mode, Timer Mode, Retentive Timer Mode or Multiple Daily Timer Mode
•Wire antenna for flexible positioning to get proper signal strength
•User can get information of events like Load ON/OFF, Phase error, Error recovery, Power Fail, Power ON, Phase fail, Contactor pick up fault through SMS
and call back from device
•Anti-theft feature
•Powered with Android App “M-Remote”
| Cat. No. |
|
26A11AV |
|
|
|
|
| Parameters |
|
|
|
|
|
|
| Supply Voltage |
|
|
|
180V AC to 500V AC (For Single Phase : Connect Live to R or Y & Neutral to B & COM terminal of Controller) |
| |
|
| |
|
| Frequency |
|
50-60 Hz |
|
|
|
|
| Power Consumption (Max.) |
|
10 VA |
|
|
|
|
| Initialisation Time |
|
45 Sec |
|
|
|
|
| Contact Ratings |
|
Terminal 15 & 16 ? NC ,Terminal 25 & 28 ? NO, 5A @ 250V AC / 30V DC (Res) |
| FUNCTIONAL CHARACTERISTICS : |
|
|
|
|
|
|
| |
|
|
|
LED |
|
INDICATION |
DEVICE STATUS |
|
| |
|
|
|
ON (Green) |
|
ON |
Master number configured. |
|
| |
|
|
|
|
Blinking @ 500 m Sec |
GSM modem in factory default mode |
| |
|
|
|
|
|
| LED Indications |
|
CFG (Red) |
|
Blinking @ 500 m Sec |
GSM modem in configuration mode |
|
| |
N/W (Green) |
|
Flash every 800 m sec |
Not registered with N/W |
|
| |
|
|
|
|
Flash every 3 sec |
Registered with N/W |
|
| |
|
|
|
|
|
Both ON |
Starter ON |
|
| |
|
|
|
I1 & I2 (Yellow) |
|
Both OFF |
Starter OFF |
|
| |
|
|
|
|
I1 Blinking @ 500 m Sec |
Phase fail |
| |
|
|
|
|
|
| |
|
|
|
|
|
Both blinking |
Power fail indication till super capacitor back up |
|
| |
|
|
|
Tx/Rx (Green) |
|
Randomly Blinking |
Communication between CPU and Modem |
|
| |
|
|
|
|
Flash every 400 m Sec |
SIM card not detected |
| |
|
|
|
|
|
| GSM Modem |
|
Quad band 850MHz,900MHz |
/ 1800MHz,1900MHz |
|
|
| Operating Temperature |
|
0° C to +60° C |
|
|
|
|
| Storage Temperature |
|
-20° C to +70° C |
|
|
|
|
| Humidity (Non Condensing) |
|
95% (Rh) |
|
|
|
|
| Enclosure |
|
Flame Retardant UL94-V0 |
|
|
| Dimension (W x H x D) (in mm) |
|
72 X 90.5 X 65 |
|
|
|
|
| Weight (unpacked) |
|
220 g approx. |
|
|
|
|
| Mounting |
|
DIN rail / Base |
|
|
|
|
| Certification |
|
.png) |
|
|
|
|
| |
|
|
|
|
|
|
|
| Degree of Protection |
|
IP 20 for Terminals, |
IP 30 for Enclosure |
|
|
