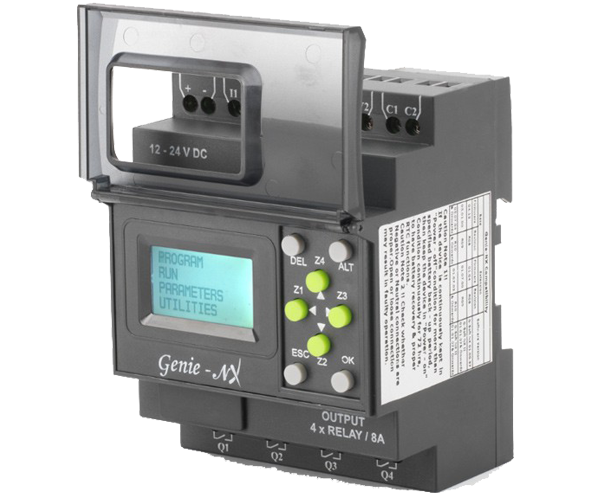

• Supports up to 48 I/Os (32 Digital Inputs & 16 Digital Outputs) 250 lines of ladder programming
• 16 soft text messages, Time Switches,Compare Counters, Timers, Counters & 12 Analog functions, 4 Hour Meters
• DST Feature Available
• Backlit LCD Screen for display & modification of pre-selected parameters of functional blocks, viewing I/O status and programming on the device
• PC software for programming, online & offline simulation, documentation & printing
• Designed for use in automation for commercial & Industrial sectors

Cat. No.

G7DDT10

Parameters

Supply Voltage

110 - 240 VAC

Supply Variation

-20% to +10% (of

Frequency

50/60 Hz

Power Consumption

5W

Digital Input

8

Analog Input

N A

Digital Input Range

(0 - 40 VAC) OFF, (80 - 265 VAC) ON

Analog Input Range

N A

Relay Output

4 NO

Digital

Contact Rating

8A @ 240 VAC / 5A @ 30 VDC (Resistive)

Output

Electrical Life

105

Mechanical Life

107

Utilization Category

AC-15

Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3.0/1.5 A

DC-13

Rated Voltage (Ue): 24/125/250 V, Rated Current (Ie): 2.0/0.22/0.1 A

I/O Extensions (Max.)

3

Power Reserve (For Clock Only)

7 yrs. (at -10oC to 55oC)

Modbus Communication

Yes (RTU) (Slave)

DST

Settable

Lines for Ladder Programming

250

Timers

16 (ON Delay, Interval, Cyclic ON-OFF, OFF Delay)

Counters

16 (Up / Down, Retentive selectable)

Function

Time Switches

16 (Weekly / Daily)

Compare Counters

16

Blocks

Analog Functions

N A

Soft Text Messages

16 (Priority Driven)

Auxiliary Relays

64

Hour Meter

4

Operating Temperature

-10O C To + 55O C

Storage Temperature

-25O C To + 70O C

Humidity (Non Condensing)

95% (Rh)

Enclosure

Flame Retardant UL 94-V0

Dimension (W x H x D) (in mm)

72X90X65

Weight (unpacked) Approx.

230 g

Mounting

Base / DIN Rail

Degree of Protection

IP 20 for Terminals, IP 40 for Enclosure

Certification

---

---

---
