•Supports up to 112 IOs
•Relay Base & MOSFET Low Side Base modules
•Stacking using FRC cable up to maximum 6 Expansion Modules
•Isolated Digital Inputs with sourcing & sinking capability
•Isolated Digital Transistorized Outputs (Low Side and High side driver)
•High Speed Inputs - Single / Quadrature (1x/2x/4x)
•High Speed Outputs (PTO / PWM / S-Profile)
•Analog Voltage/Current Inputs and Outputs of 0-10 V / 4-20 mA
•PC Software for programming, online & offline simulation
•Standard RS232/RS485 port with RJ11 for HMI/SCADA Interface
•Modbus RTU support
•128 Weekly, Monthly & Yearly Time Switches each
•Multiple Timers, Counters including retentive counters, Hour meters & many more function blocks

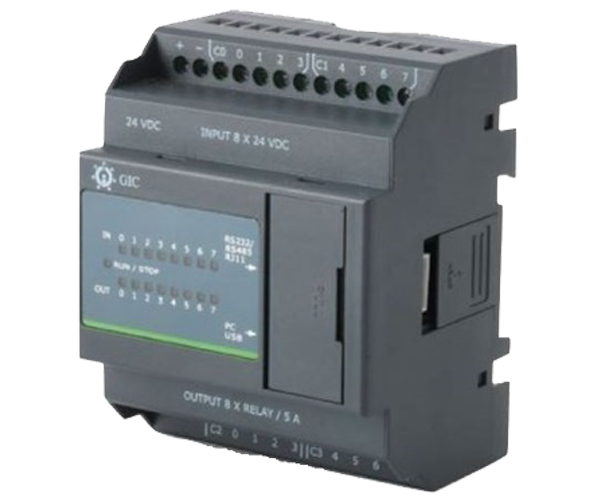

Cat. No.			PC10BD16001D1
Parameters
Power Supply
Supply Voltage			24 VDC
Supply Tolerance			- 20% to +10%
Internal Current Consumption			65mA @ 24 VDC
Inrush Current			2.5A @ 24VDC
Battery Backup			30 Days
(In Event of Power failure)
Separate Power Supply			Not required
For Output
Digital Inputs
No. of Inputs			8
Grouping			(4+1 Common)*2
Type of Inputs			Sinking / Sourcing
Input Voltage Range			0 - 26.4 VDC
Level (Logic 0)			Max. 7VDC
Level (Logic 1)			Min. 16VDC
Max. Input Current			1.2 mA per input
Hardware Delay			5 msec
Digital Filter Time (Sampling Time)			28 msec
Min. Pulse Width			(Hardware Delay + Digital Filter Time) OR
			(System Loop Time) whichever is higher.
Max. I/P frequency			10 Hz (for worst case condition)
High Speed Level		(Logic 0)	-
High Speed Level		(Logic 1)	-
Max Input Current			-
Max High Speed Input Current			-
Min. Pulse width for
High Speed Inputs (for 'low to high'			-
or 'high to low' transition)
Max. I/P frequency for			-
high speed inputs.
Digital Outputs
No. of Outputs			8
Grouping			(4+1 Common)*2
Output Hardware			Relay (NO)
Rated Load			5 A (Res.) @ 230 VAC / 30 VDC
Max load per common			10 A
Max operations			1x105
Protection			External Fuse
Min. load for High Speed Output			-
HSO frequency			-
Isolation
Between Output & Supply			2KV
Between Input & Supply			2KV
Communication
PC Port (USB)			USB Port (Type B) for PC Communication
Isolation for USB Port			2KV between communication lines and internal circuit
HMI Port (RS-232 / RS-485)			RJ11 Port for HMI (or any MODBUS Device)
Communication parameters			Software selectable for HMI Port
HMI port comm. Protocol			MODBUS Slave / MODBUS Master
Functional
Programming language			Ladder
Scan Time			50 mS max.
User Program memory			32 k
User Data memory			1 k
Maximum no. of I/O s			100
Maximum no. of Extension modules			6

---

---

---
