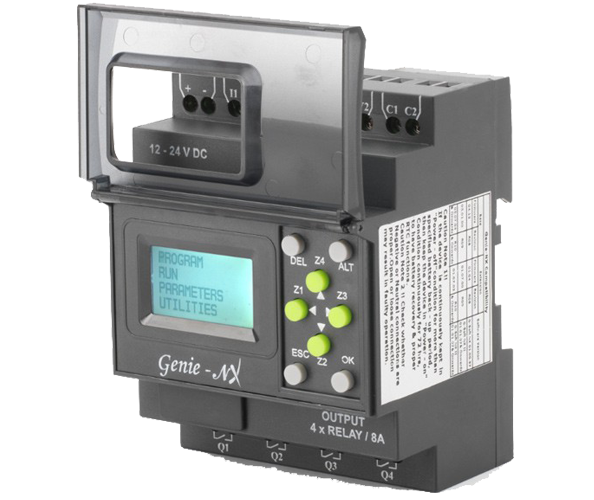

Cat. No.

G8DDT10

Parameters

Supply Voltage

12 - 24 VDC

Supply Variation

-20% to +10% (of

Frequency

50/60 Hz

Power Consumption

5W

Digital Input

6

Analog Input

2 (Can be used as Digital Inputs)

Digital Input Range

(0 - 4 VDC) OFF, (8 - 26.4 VDC) ON

Analog Input Range

0 to 10 VDC

Relay Output

4 NO

Digital

Contact Rating

8A @ 240 VAC / 5A @ 30 VDC (Resistive)

Output

Electrical Life

105

Mechanical Life

107

Utilization Category

AC-15

Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3.0/1.5 A

DC-13

Rated Voltage (Ue): 24/125/250 V, Rated Current (Ie): 2.0/0.22/0.1 A

I/O Extensions (Max.)

3

Power Reserve (For Clock Only)

7 yrs. (at -10oC to 55oC)

Modbus Communication

Yes (RTU) (Slave)

DST

Settable

Lines for Ladder Programming

250

Timers

16 (ON Delay, Interval, Cyclic ON-OFF, OFF Delay)

Counters

16 (Up / Down, Retentive selectable)

Function

Time Switches

16 (Weekly / Daily)

Compare Counters

16

Blocks

Analog Functions

12

Soft Text Messages

16 (Priority Driven)

Auxiliary Relays

64

Hour Meter

4

Operating Temperature

-10O C To + 55O C

Storage Temperature

-25O C To + 70O C

Humidity (Non Condensing)

95% (Rh)

Enclosure

Flame Retardant UL 94-V0

Dimension (W x H x D) (in mm)

72X90X65

Weight (unpacked) Approx.

230 g

Mounting

Base / DIN Rail

Degree of Protection

IP 20 for Terminals, IP 40 for Enclosure

Certification

---

---

---
