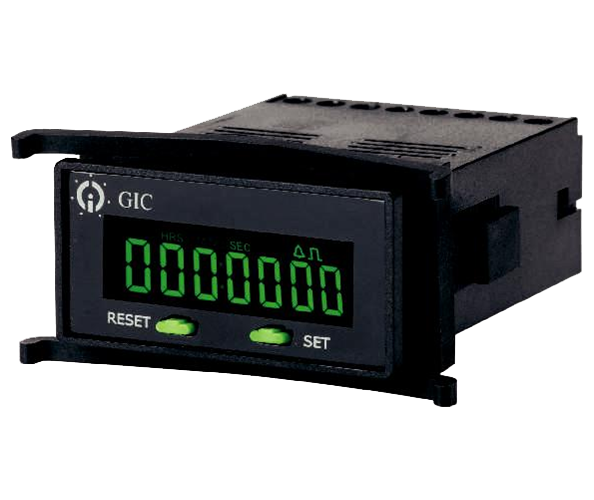

Cat. No.

Z2221N0G2FT00

Parameters

Supply Voltage

85 - 265 VAC/DC

Power Consumption (W)

2VA/1W

Supply Frequency

50 / 60 Hz

I/P Signal Characteristics

Signal Voltage Range

85 - 265 VAC & 100 - 265 VDC

Signal Isolation

2kV

Output Characteristics

Output type

Relay: 1 NO, Contact Rating:

5 A(Res.) @ 250 VAC/30 VDC

Contact Material: Ag Alloy

Functional Characteristics

Display

7 digit LCD , 6.5 mm Height, 12 O? Clock, Transmissive

Number of keys

2 (SET key & RST key)

Reset function

Reset type

Terminal

Front

Auto Reset

Time (min.)

80 ms

3 Sec

-

Hour

Accuracy

± 2sec per Day

Meter

Ranges

Hrs : Min : Sec (999:59:59), Hrs : Min (99999:59), Hrs (9999999), Min (9999999), Sec (9999999)

Functions

Input Signal

For Hour counting detection, Signal has to be present for min. 3msec & signal has to be absent for min 20msec.

Accuracy

100%

Range

1 to 9999999.999

Counter

Decimal Point Position(max.)

3

Functions

Pre-scaler

4 Digit

Input

Switching Freq.(max.)

10 Hz for AC and 40 Hz for DC

Signal

Pulse Width min.

50ms ON/50ms OFF for AC, 12.5ms ON/12.5ms OFF for DC

Environmental Characteristics

Operating Temperature

-5° C to +55° C

Storage Temperature

-10° C to +60° C

Humidity

5 to 95% Rh (Without condensation)

Maximum Operating Altitude

2000 m

Pollution Degree

II

Degree of Protection

Front side: IP40; Terminals: IP20, Housing : IP30

Enclosure material

UL 94 V0 Plastic

Casing color

Black

Other Characteristics

Mounting

Flush mounting on panel cut-out

Panel Cut-out

22mm X 44.8mm

Weight (Un-packed)

52 gm

Operating position

Horizontal

Termination wire Sizes

Wire size : 22-14 AWG, 0.3-2.5 mm

---

---

---
