• Wide input signal sensing range 0.01Hz to 20KHz
• Wide Totalizer range from 1 to 9999999
• Wide Rate range from 1 to 999999
• Prescaling facility for Rate Indicator
• Alarm facility for both Rate Indicator & Totalizer
• Password protection
• Signal Over-range displayed

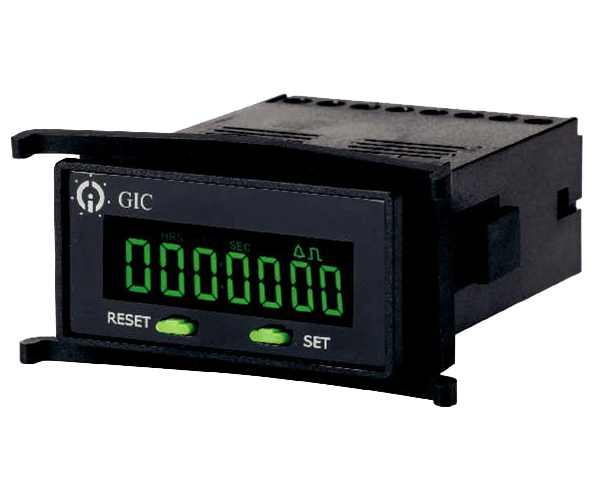

Cat. No.					Z3301N0G2FT00
Parameters
Supply Voltage					9-30VDC
Max. Power Consumption (W)					0.73 W
Input Signal					Range 1 : 0.1 Hz to 40 Hz
Frequency Range					Range 2 : 0.1 Hz to 20 KHz
Output Type					Relay: 1 NO, Contact Rating:5 A(Res.) @250 VAC / 30VDC Contact Material: Ag Alloy
Display					7 digit LCD, 6.5mm Height, 12 O? Clock, Transmissive
Rate Display					6 digit Display
Number of keys					2 (SET & RST)
Reset				Reset type	Terminal		Front		Auto Reset
Function				Time (min.)	80 ms		3 Sec		-
Rate Accuracy					± 0.01%
Totalizer Accuracy					100 %
Decimal Point Position (max.)					4
Pre-scaler					4 digits before decimal point & 3 digits after decimal point.
Operating Temperature					- 10° C to +55° C
Storage Temperature					- 10° C to +60° C
Humidity					5 to 95% Rh (Without condensation)
Maximum Operating Altitude					2000 m
Pollution Degree					II
Degree of Protection					Front side : IP40; Terminals: IP20, Housing: IP30
Enclosure material					UL 94 V0 Plastic
Casing color					Black
Weight (Unpacked)					52g
Operating Position					Horizontal
Termination wire Sizes					Wire size : 22-14 AWG, 0.3-2.5 mm
Panel Cut-out					22mm X 44.8mm
Mounting					Flush / Panel Mounting
Certification

---

---

---
