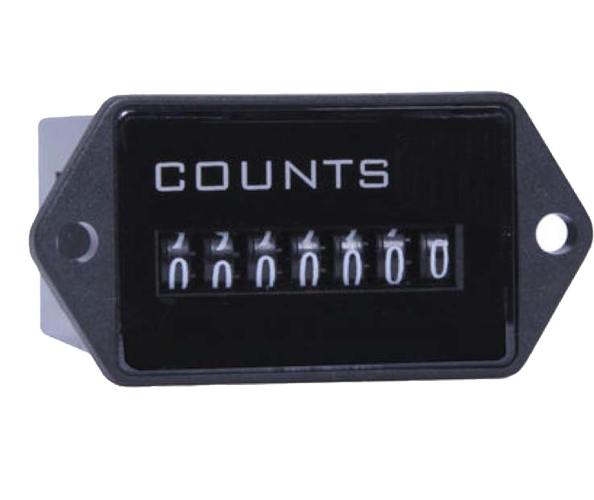

Cat. No.				QD22A
Parameters
Supply Voltage			24 VDC
Supply Variation			-15% to +10%
Power Consumption (Max.)			0.25 VA
Figure			7 Digit, White on Black, (3.6mm) High
Maximum Range			9999999
Speed			10 Hz Maximum (600 counts/minute)
Pulse Width			50 ms. minimum
Counting Method			One Pulse - One Count (energizing - ½ count, de-energizing - ½ count)
Weight			45 gm
Operating Temperature			-5°C to +50°C
Humidity (Non Condensing)			45% to 85% (Rh)
Mounting			Panel
Degree of Protection			NEMA 4X (IP 65)
Certification

---

---

---
