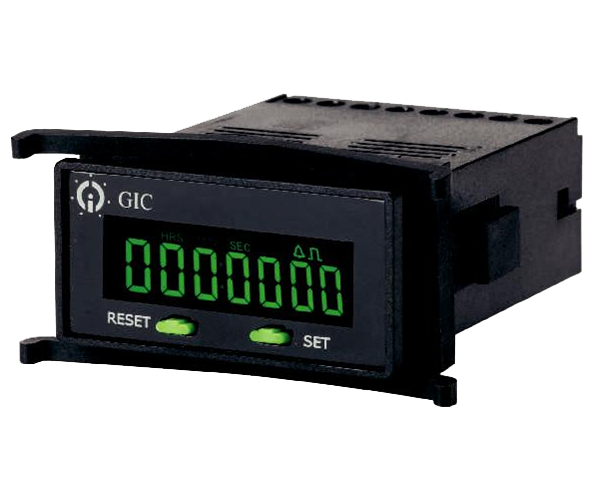

digital hour meter & counter 9-30 VDC
|
Item Name: digital hour meter & counter 9-30 VDC
SKU 1: Z2301N0G1FT00
SKU 2: 0
|
|
•Suitable for Hour meter & Counter (Up / Down) application
•Wide Hour meter range from 1 sec to 9999999 hrs
•Wide counter range from 1 to 9999999 counts
•Prescaling facility for Counter
•Runtime set point change & Alarm facility for both Hour meter & Counter
•Configurable NO/NC Relay & MOSFET Output with Over Load detection
•Retentive & Non-Retentive modes
•7 Digit LCD with luxurious green backlight & Password Protection
•Compact size
•Suitable for panel mounting
| Cat. No. |
|
Z2301N0G1FT00 |
|
| Parameters |
|
|
|
|
|
|
| Supply Voltage |
|
|
|
|
9-30VDC |
|
|
|
|
| |
|
|
|
|
|
|
| |
|
|
|
|
|
| Power Consumption (W) |
2 W max. |
|
|
|
|
| Supply Frequency |
|
50 / 60 Hz |
|
|
|
| I/P Signal Characteristics |
|
|
|
|
|
| Signal Voltage Range |
9-30VDC |
|
|
|
|
| Signal Isolation |
|
2kV |
|
|
|
| Output Characteristics |
|
|
|
|
|
| Output type |
|
2 MOSFET: 30 VDC/60 mA (Max.) |
|
| |
|
|
|
|
|
|
Note: Use isolated input supply |
|
| Functional Characteristics |
|
|
|
|
|
| Display |
|
|
|
|
|
7 digit LCD , 6.5 mm Height, 12 O? Clock, Transmissive |
| Number of keys |
|
2 (SET key & RST key) |
|
| Reset function |
|
|
Reset type |
Terminal |
|
Front |
|
Auto Reset |
| |
|
Time (min.) |
80 ms |
|
3 Sec |
|
- |
| |
|
|
|
|
|
|
|
| Hour |
|
Accuracy |
± 2sec per Day |
|
| Meter |
|
Ranges |
Hrs : Min : Sec (999:59:59), Hrs : Min (99999:59), Hrs (9999999), Min (9999999), Sec (9999999) |
| Functions |
|
Input Signal |
For Hour counting detection, Signal has to be present for min. 3msec & signal has to be absent for min 20msec. |
| |
|
Accuracy |
100% |
|
|
|
|
| |
|
Range |
|
1 to 9999999.999 |
|
| Counter |
|
Decimal Point Position(max.) |
3 |
|
|
|
|
| Functions |
|
Pre-scaler |
4 Digit |
|
|
|
| |
|
Input |
|
Switching Freq.(max.) |
10 Hz for AC and 40 Hz for DC |
| |
|
Signal |
|
Pulse Width min. |
50ms ON/50ms OFF for AC, 12.5ms ON/12.5ms OFF for DC |
| Environmental Characteristics |
|
|
|
|
|
| Operating Temperature |
-5° C to +55° C |
|
| Storage Temperature |
-10° C to +60° C |
|
| Humidity |
|
|
|
|
|
5 to 95% Rh (Without condensation) |
| Maximum Operating Altitude |
2000 m |
|
|
|
| Pollution Degree |
|
II |
|
|
|
| Degree of Protection |
Front side: IP40; Terminals: IP20, Housing : IP30 |
| Enclosure material |
UL 94 V0 Plastic |
|
| Casing color |
|
Black |
|
|
|
| Other Characteristics |
|
|
|
|
|
| Mounting |
|
|
|
|
|
Flush mounting on panel cut-out |
| Panel Cut-out |
|
22mm X 44.8mm |
|
| Weight (Un-packed) |
52 gm |
|
|
|
| Operating position |
|
Horizontal |
|
|
|
| Termination wire Sizes |
Wire size : 22-14 AWG, 0.3-2.5 mm |
