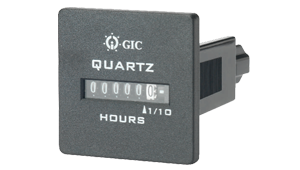

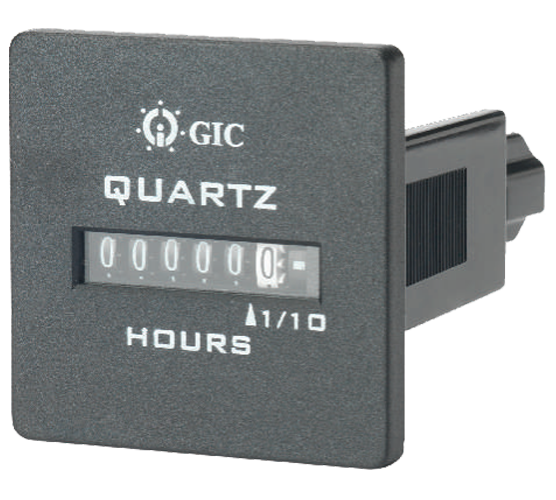

Cat. No.	LA23F1
Parameters
Supply Voltage	90 - 264 VAC
Frequency	50/60 Hz
Over Voltage & Reverse Polarity Protection	N A
Power Consumption (Max.)	0.5 VA
Bezel	Square Mount
Register	6 Digit (3.6mm)
Read Out	99999.9
Least Count	0.1 Hrs
Accuracy	± 0.02% over entire range
Vibration	10-80Hz with 20g max (SAE J1378)
Shock	55g @ 9-13ms (SAE J1378)
Weight (unpacked)	47g
Temperature	-40° C to +85° C
Humidity (Non Condensing)	95% (Rh)
Mounting	Panel
Termination	¼" [6.3] Spade Terminal
Degree of Protection	IP 66
Approvals	SAE & NEMA 4X

---

---

---
