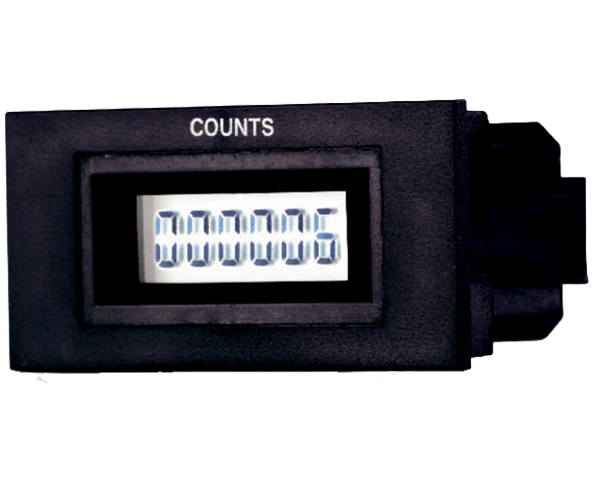

•6-digit LCD
•In-built nonvolatile memory (EEPROM) offering exceptional reliability
•Wide range of supply voltage
•Remote reset
•Available in 3 different shaped Bezels
•Low Power Consumption

Cat. No.			Z72FBX
Parameters
Supply Voltage			85 - 265 VAC
Frequency			50/60 Hz
Power Consumption (Max.)			0.8 VA
Counting frequency			10Hz
Maximum Range			999999
Display			Large 6-Digit display, easy to read
Resolution			1 Count
Reset			Electrical
Memory Retention			100 Years
Operating Temperature			- 10° C to +50° C
Storage Temperature			- 20° C to +65° C
Accuracy			± 1 Count
Humidity (Non Condensing)			95% (Rh)
Degree of Protection			IP54
Enclosure			UL94-V0
Terminals			1 & 2: Input Supply, 3: Count 4: Reset
Panel cut outs			Round Bezel, 24 x 48 Bezel, Screw Mount Bezel
Mounting			Flush/ Panel Mounting
Certification
Weight (unpacked)			With Round Bezel - 35g, with 24 x 48 Bezel - 29 g, with Screw Mount Bezel - 31 g



---

---

---
