Parameters

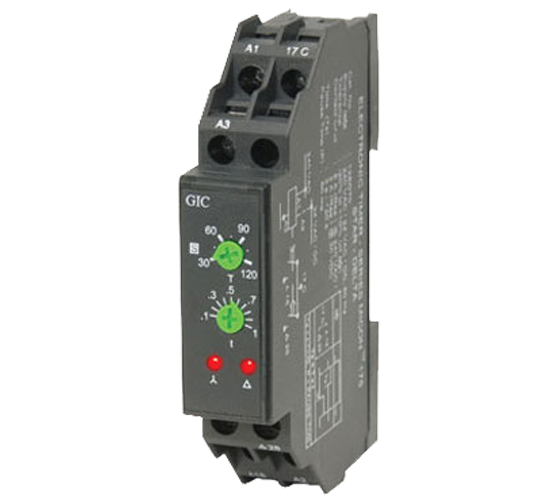

Timer Description

Star Delta Timer

Mode

Star Delta

Functional Diagram

Supply Voltage

240 VAC

Supply Variation

- 20% to +10%

Frequency

50 Hz

Power Consumption (Max.)

8 VA

Timing Ranges

3s to 120s

Pause Time

60 ms

Reset Time

150 ms (Max.)

Setting Accuracy

± 5% of Full scale

Repeat Accuracy

± 1%

Relay Output

Star - 1 'NO', Delta - 1 'NO'

Output

Contact Rating

5A @ 240 VAC / 3A @ 30 VDC (Resistive)

Electrical Life

1X105

Mechanical Life

5X106

Utilization Category

AC-15

Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3.0/1.5 A

DC-13

Rated Voltage (Ue): 24/125/250 V, Rated Current (Ie): 2.0/0.22/0.1 A

Operating Temperature

-10°C to +55°C

Storage Temperature

-20°C to +70°C

Humidity (Non Condensing)

95% (Rh)

LED Indication

Red LED 1

Enclosure

Flame Retardant UL94-V0

Dimension (W x H x D) (in mm)

17.5 X 90 X 58.5

Weight (unpacked)

60 g

Mounting

Base / DIN Rail

Certification

Degree of Protection

IP 20 for Terminals, IP 40 for Enclosure

EMI / EMC

Harmonic Current Emissions

IEC 61000-3-2

ESD

IEC 61000-4-2

Radiated Susceptibility

IEC 61000-4-3

Electrical Fast Transients

IEC 61000-4-4

Surges

IEC 61000-4-5

Conducted Susceptibility

IEC 61000-4-6

Voltage Dips & Interruptions (AC)

IEC 61000-4-11

Voltage Dips & Interruptions (DC)

IEC 61000-4-29

Conducted Emission

CISPR 14-1

Radiated Emission

CISPR 14-1

Environmental

Cold Heat

IEC 60068-2-1

Dry Heat

IEC 60068-2-2

Vibration

IEC 60068-2-6

Repetitive Shock

IEC 60068-2-27

Non-Repetitive Shock

IEC 60068-2-27

---

---

---
