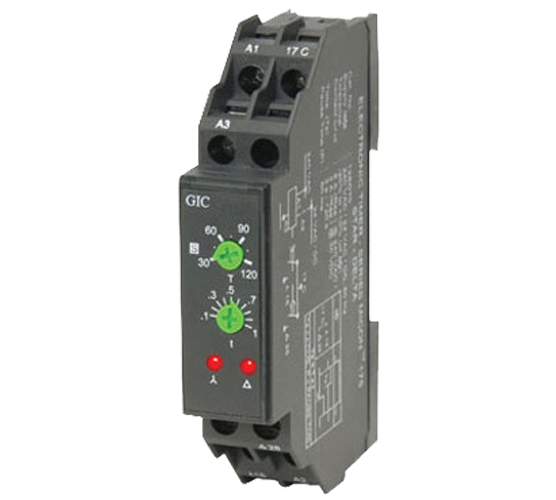

Cat. No.		12ODT4
Parameters
Timer Description	ON Delay Timer
Mode		ON Delay
Functional Diagram

Supply Voltage

240 VAC / 24 VAC/DC

Supply Variation

- 20% to +10%

Frequency

50/60 Hz

Power Consumption (Max.)

8 VA

Timing Ranges

0.3s to 30h

Reset Time

100 ms (Max.)

Setting Accuracy

± 5% of Full scale

Repeat Accuracy

± 1%

Relay Output

1 C/O

Output

Contact Rating

5A @ 240 VAC / 28 VDC (Resistive)

Electrical Life

1X105

Mechanical Life

5X106

Utilization Category

AC-15

Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3.0/1.5 A

DC-13

Rated Voltage (Ue): 24/125/250 V, Rated Current (Ie): 2.0/0.22/0.1 A

Operating Temperature

-10°C to +55°C

Storage Temperature

-20°C to +70°C

Humidity (Non Condensing)

95% (Rh)

LED Indication

Green LED Power ON, Red LED

Enclosure

Flame Retardant UL94-V0

Dimension (W x H x D) (in mm)

17.5 X 90 X 58.5

Weight (unpacked) Approx.

65 g

Mounting

Base / DIN Rail

Certification

Degree of Protection

IP 20 for Terminals, IP 40 for Enclosure

EMI / EMC
Harmonic Current Emissions	IEC 61000-3-2
ESD	IEC 61000-4-2
Radiated Susceptibility	IEC 61000-4-3
Electrical Fast Transients	IEC 61000-4-4
Surges	IEC 61000-4-5
Conducted Susceptibility	IEC 61000-4-6
Voltage Dips & Interruptions (AC)	IEC 61000-4-11
Voltage Dips & Interruptions (DC)	IEC 61000-4-29
Conducted Emission	CISPR 14-1
Radiated Emission	CISPR 14-1
Environmental
Cold Heat	IEC 60068-2-1
Dry Heat	IEC 60068-2-2
Vibration	IEC 60068-2-6
Repetitive Shock	IEC 60068-2-27
Non-Repetitive Shock	IEC 60068-2-27

---

---

---
