Cat. No.									V7DDSS3
Parameters

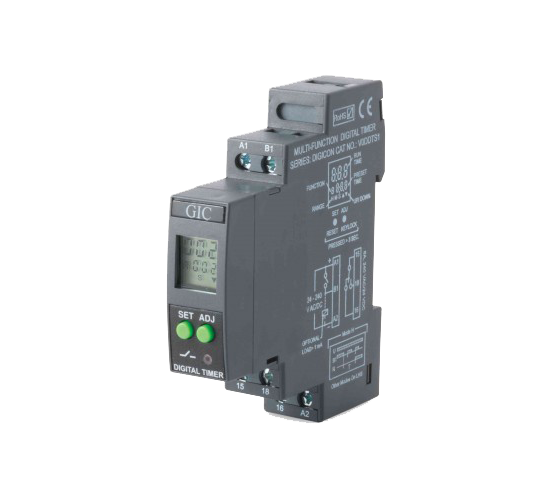

Timer Description											Programmable Multi Function Digital Timer
Default Functions						1)	On delay							18)		Impulse on/off
						2)	On delay constant supply					type 2		19)		Accumulative delay on signal
						3)	On delay constant supply					type 3		20)		Accumulative delay on inverted signal
						4) On delay (control switch resettable)								21)		Accumulative impulse on signal
						5)	Signal on delay							22)		Leading edge impulse
						6) Inverted signal on delay								23)		Leading edge impulse 2
						7) Inverted signal on delay type 2								24)		Trailing edge impulse
						8)	Signal off delay							25)		Trailing edge impulse 2
						9)	Off delay const. supply type 2							26)		Delayed impulse
						10)	Cyclic on/off							27)		Delayed impulse type 2
						11)	Cyclic off/on							28)		Delayed pulse (constant supply)
						12) Asymmetric cycle pulse start								29)		Delayed pulse (remote trig.)
						13) Asymmetric recycler pulse start type 2								30)		Delayed pulse (const. supply type 1)
						14)	Signal on off delay							31)		On pulse (control switch resettable)
						15)	Signal on off delay type 2							32)		On pulse (supply reset)mode
						16)	Signal off/on (new)							33)		Leading edge bi-stable or step relay
						17)	Impulse on energizing							34)		Forward - Reverse Mode with total time
														35)		Forward - Reverse Mode without total time

Supply Voltage

110 - 240 VAC

Supply Variation

-20% to +10%

Frequency

47-63 Hz

Power Consumption (Max.)

9 VA

Timing Range

0.1s to 999 days

Reset Time/Initiate Time

200 ms (Max.) / 100 ms (Max.)

Input Signals/Signal Isolation

High Range: 85-265V AC/ 100-265V DC, Low Range: 24-60V AC/DC / 2 KV

Signal Sensing Time/ Wait Period

50ms. (max.) / 100ms @ Power On & for signal based modes only.

Timing Accuracy

± 0.01%

Relay Output

2 C/O

Output

Contact Rating

5A for NO & 3A for NC @ 250VAC/30VDC (Resistive.)

Electrical Life

1x105

Mechanical Life

5x106

Utilization Category

AC-15

250V AC/2A, Cos Ø = 0.6, 85ºc, 100000 Operations.

DC-13

Ue rated voltage V - 24; Ie rated current A - 2.0.

Operating Temperature

-5° C to +55° C

Storage Temperature

-10° C to +60° C

Humidity (Non Condensing)

95% (Rh)

LED Indication

SV (Red) - Set Value; P1/P2 (Red) -P1 Running; Up/Down (Red)-Up Counting;

SG (Green)- Signal Present;OP1 (Red)-Relay OP1 ON;OP2 (Red)-Relay OP2 ON;

Enclosure

IP 30 for Housing & front Facial and IP 20 for Terminals

Dimension (W x H x D) (in mm)

48 X 48 X 92.5

Weight (unpacked)

160 g

Mounting

Base / DIN Rail with 11 Pin Universal socket

Degree of Protection

IP 20 for Terminals, IP 30 for Enclosure, IP 40 for Front side

EMI / EMC
Harmonic Current Emissions	IEC 61000-3-2
ESD	IEC 61000-4-2
Radiated Susceptibility	IEC 61000-4-3
Electrical Fast Transients	IEC 61000-4-4
Surges	IEC 61000-4-5
Conducted Susceptibility	IEC 61000-4-6
Voltage Dips & Interruptions (AC)	IEC 61000-4-11
Voltage Dips & Interruptions (DC)	IEC 61000-4-29
Conducted Emission	CISPR 14-1
Radiated Emission	CISPR 14-1
Environmental
Cold Heat	IEC 60068-2-1
Dry Heat	IEC 60068-2-2
Vibration	IEC 60068-2-6
Repetitive Shock	IEC 60068-2-27
Non-Repetitive Shock	IEC 60068-2-27



---

---

---
