Cat. No.

V0DDTS1

Parameters

Timer Description

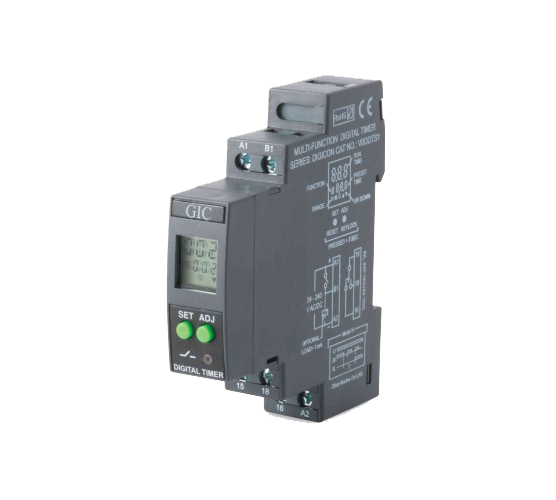

Multi Function Digital Timer

Functions

1)

ON Delay

1)

ON Delay

2)

Cyclic OFF/ON

2)

Cyclic OFF/ON

3)

Cyclic ON/OFF

3)

Cyclic ON/OFF

4)

Signal ON/OFF

4)

Impulse on Energizing

5)

Signal OFF Delay

5)

Accumulative Delay on Signal

6)

Interval

6)

Accumulative Delay on Inverted Signal

7)

Signal OFF/ON

7)

Accumulative Impulse on Signal

8)

One Shot Output

8)

Signal ON Delay

9)   Inverted Signal ON Delay

10)  Signal OFF Delay

11)  Impulse ON/OFF

12)  Signal OFF/ON

13)  Leading Edge Impulse 1

14)  Leading Edge Impulse 2

15)

Trailing Edge Impulse 1

16)

Trailing Edge Impulse 2

17)  Delayed Impulse

18)

Inverted Signal ON Delay

Supply Voltage

24 - 240 VAC/DC

Supply Variation

-15% to +10%

Frequency

50/60 Hz

Power Consumption (Max.)

0.5 VA (@ 24/48 VAC), 4 VA (@ 110 to 265 VAC/DC)

Timing Range

0.1s to 999h

Reset Time

200 ms (Max.)

Repeat Accuracy

± 0.5%

Relay Output

1 C/O

Output

Contact Rating

8A @ 240 VAC / 24 VDC

(Resistive)

Electrical Life

1x105

Mechanical Life

2x107

Utilization Category

AC-15

Rated Voltage (Ue): 125/240 V, Rated Current (Ie): 3/1.5 A

DC-13

Rated Voltage (Ue): 125/250 V, Rated Current (Ie): 2/0.22/0.1 A

Operating Temperature

-10° C to +55° C

Storage Temperature

-20° C to +65° C

Humidity (Non Condensing)

95% (Rh)

LED Indication

Red LEDRelay ON

Enclosure

Flame Retardant UL94-V0

Dimension (W x H x D) (in mm)

18X85X76

Weight (unpacked) Approx.

85 g

Mounting

DIN Rail

Certification

Degree of Protection

IP 20 for Terminals, IP 30 for Enclosure, IP 40 for Front side

EMI / EMC
Harmonic Current Emissions	IEC 61000-3-2
ESD	IEC 61000-4-2
Radiated Susceptibility	IEC 61000-4-3
Electrical Fast Transients	IEC 61000-4-4
Surges	IEC 61000-4-5
Conducted Susceptibility	IEC 61000-4-6
Voltage Dips & Interruptions (AC)	IEC 61000-4-11
Voltage Dips & Interruptions (DC)	IEC 61000-4-29
Conducted Emission	CISPR 14-1
Radiated Emission	CISPR 14-1
Environmental
Cold Heat	IEC 60068-2-1
Dry Heat	IEC 60068-2-2
Vibration	IEC 60068-2-6
Repetitive Shock	IEC 60068-2-27
Non-Repetitive Shock	IEC 60068-2-27

---

---

---
