• Battery charger with safety relay 20 A 24 VDC

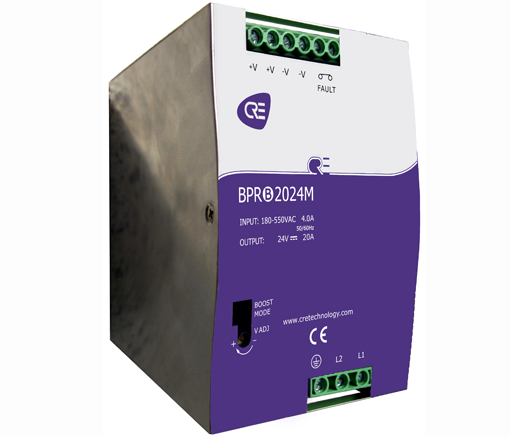

Item Name: Battery charger with safety relay 20 A 24 VDC
SKU 1: BPRB2024M
SKU 2: 0
  • Next Product
Category: BPRB RANGE
Brand: CRE TECHNOLOGY

REFERENCES UNIT BPRB 2024M
OUTPUT CURRENT A 20
OUTPUT VOLTAGE VDC 24-28
DC VOLTAGE ADJUSTABLE . yes
INPUT VOLTAGE RANGE VAC 180~550
INPUT fREQUENCY RANGE Hz 47-63
EffICIENCY (TYPICAL) % 91
WORKING TEMPERATURE °C -25 / +70
STORAGE TEMPERATURE °C -40 / +85
WIDTH mm 63
HEIGHT mm 125.2
DEPTH mm 113.5
WEIGHT kg 1
fAILURE RELAY . yes
BOOST MODE (ACTIVATED BY EXTERNAL CONTACT)   yes
