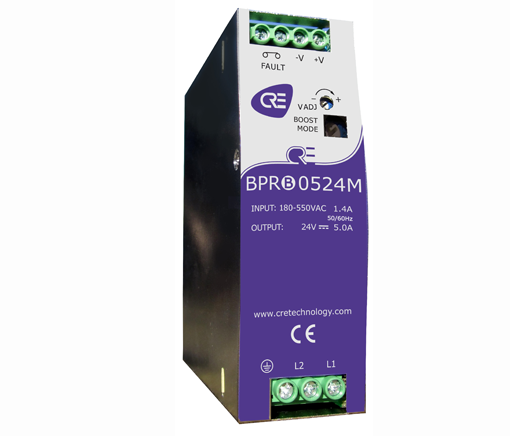

• Battery charger with safety relay 5 A 24 VDC
Item Name: Battery charger with safety relay 5 A 24 VDC
SKU 1: BPRB 0524M
SKU 2: 0
  • Previous Product
Category: BPRB RANGE
Brand: CRE TECHNOLOGY

REFERENCES UNIT BP+ 0524M
OUTPUT CURRENT A 5
OUTPUT VOLTAGE VDC 24 - 28
DC VOLTAGE ADJUSTABLE . yes
INPUT VOLTAGE RANGE VAC 90 ~ 264
INPUT fREQUENCY RANGE Hz 47 - 63
EffICIENCY (TYPICAL) % 87
WORKING TEMPERATURE °C -20 / +70
STORAGE TEMPERATURE °C -40 / +85
WIDTH mm 40
HEIGHT mm 125.2
DEPTH mm 113.5
WEIGHT kg 0.57
fAILURE RELAY . No
BOOST MODE (ACTIVATED BY EXTERNAL CONTACT)   No
