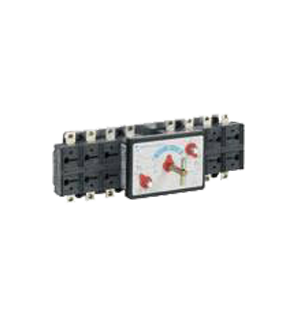

Tipo				CO5P 50 kA
Rated current		(In)		1250A
Rated insulation voltage	c.a./AC	(Ui)	(V)	1000
	c.c./DC	(Ui)	(V)	1500
Impulse withstand voltage		(U imp)	(kV)	12
Rated thermal current		(Ith)	(A)	1250
Rated operational current (le)	AC-21A/B	400V	(A)	1250
		500V	(A)	1250
		690V	(A)	1250
	AC-22A/B	400V	(A)	1250
		500V	(A)	1250
		690V	(A)	1250
	AC-23A/B	400V	(A)	1250
		500V	(A)	1000
		690V	(A)	-
	DC-21A/B(1)	220V	(A)	1250
		420V	(A)	-
		560V	(A)	-
	DC-22A/B(1)	220V	(A)	1250
		420V	(A)	-
		560V	(A)	-
	DC-23A/B(1)	220V	(A)	800
		420V	(A)	-
		560V	(A)	-
Rated making capacity at 400V AC23			(A)	12500
Rated breaking capacity at 400V AC23			(A)	10000
Short-circuit withstand current 1 sec.			(kA)	50
Short-circuit withstand current 0,25 sec			(kA)	100
Short-circuit making capacity		(400V)	(kA)	105
Rated operational power AC-23A		(400V)	(Kw)	630
Rated fuse short-circuit
Back up fuse			(A)	1250
R.M.S. value			(kA)	100
Peak value			(kA)	70
Mechanical endurance			n°	4000
Electrical endurance			n°	500
Rated capacitor power at 400V			kVAR	600
Power losses for pole			(W)	38,0
Cable section			mmq	-
Bars dimension			mm	2x50x8

---

---

---
