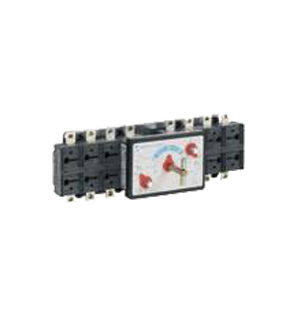

• MANUAL CHANGE-OVER SWITCHES 63A 3P
Item Name: MANUAL CHANGE-OVER SWITCHES 63A 3P
SKU 1: 110023
SKU 2: 0
  • Previous Product

Tipo CO1P
Rated current (In)   63A
Rated insulation voltage c.a./AC (Ui) (V) 1000
c.c./DC (Ui) (V) 1500
Impulse withstand voltage (U imp) (kV) 8
Rated thermal current (Ith) (A) 63
Rated operational current (le) AC-21A/B 400V (A) 63
690V (A) 63
AC-22A/B 400V (A) 63
500V (A) 63
690V (A) 63
AC-23A/B 400V (A) 63
500V (A) 45
690V (A) 35
DC-21A/B(1) 220V (A) 63
420V (A) -
560V (A) -
DC-22A/B(1) 220V (A) 63
420V (A) -
560V (A) -
DC-23A/B(1) 220V (A) 35
420V (A) -
560V (A) -
Rated making capacity at 400V AC23 (A) 630
Rated breaking capacity at 400V AC23 (A) 504
Short-circuit withstand current 1 sec. (kA) 5
Short-circuit withstand current 0,25 sec (kA) 10
Short-circuit making capacity (400V) (kA) 7,5
Rated operational power AC-23A (400V) (Kw) 33
Rated fuse short-circuit
Back up fuse (A) 63
R.M.S. value (kA) 100
Peak value (kA) 10
Mechanical endurance 12000
Electrical endurance 3000
Rated capacitor power at 400V kVAR 30
Power losses for pole (W) 0,4
Cable section mmq 50
Bars dimension mm 16x3
