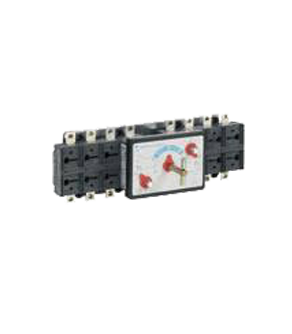

• MANUAL CHANGE-OVER SWITCHES 160A 4P
Item Name: MANUAL CHANGE-OVER SWITCHES 160A 4P
SKU 1: 120113
SKU 2: 0

Tipo CO2P
Rated current (In)   160A
Rated insulation voltage c.a./AC (Ui) (V) 1000
c.c./DC (Ui) (V) 1500
Impulse withstand voltage (U imp) (kV) 12
Rated thermal current (Ith) (A) 160
Rated operational current (le) AC-21A/B 400V (A) 160
500V (A) 160
690V (A) 160
AC-22A/B 400V (A) 160
500V (A) 160
690V (A) 160
AC-23A/B 400V (A) 160
500V (A) 160
690V (A) 160
DC-21A/B(1) 220V (A) 160
420V (A) 160
560V (A) -
DC-22A/B(1) 220V (A) 160
420V (A) 160
560V (A) -
DC-23A/B(1) 220V (A) 160
420V (A) 160
560V (A) -
Rated making capacity at 400V AC23 (A) 1600
Rated breaking capacity at 400V AC23 (A) 1280
Short-circuit withstand current 1 sec. (kA) 8
Short-circuit withstand current 0,25 sec (kA) 16
Short-circuit making capacity (400V) (kA) 13,5
Rated operational power AC-23A (400V) (Kw) 85
Rated fuse short-circuit
Back up fuse (A) 160
R.M.S. value (kA) 100
Peak value (kA) 16
Mechanical endurance 10000
Electrical endurance 2000
Rated capacitor power at 400V kVAR 70
Power losses for pole (W) 1,6
Cable section mmq 120
Bars dimension mm 20x5
