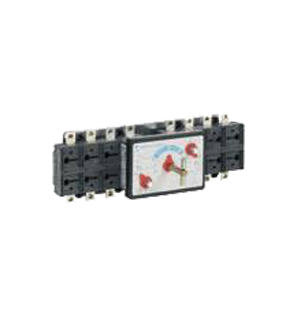

• MANUAL CHANGE-OVER SWITCHES 1000A 3P
Item Name: MANUAL CHANGE-OVER SWITCHES 1000A 3P
SKU 1: 150083
SKU 2: 0

Tipo CO5P 50 kA
Rated current (In)   1000A
Rated insulation voltage c.a./AC (Ui) (V) 1000
c.c./DC (Ui) (V) 1500
Impulse withstand voltage (U imp) (kV) 12
Rated thermal current (Ith) (A) 1000
Rated operational current (le) AC-21A/B 400V (A) 1000
500V (A) 1000
690V (A) 1000
AC-22A/B 400V (A) 1000
500V (A) 1000
690V (A) 1000
AC-23A/B 400V (A) 1000
500V (A) 800
690V (A) 630
DC-21A/B(1) 220V (A) 1000
420V (A) - -
560V (A) -
DC-22A/B(1) 220V (A) 1000
420V (A) -
560V (A) -
DC-23A/B(1) 220V (A) 630
420V (A) -
560V (A) -
Rated making capacity at 400V AC23 (A) 10000
Rated breaking capacity at 400V AC23 (A) 8000
Short-circuit withstand current 1 sec. (kA) 50
Short-circuit withstand current 0,25 sec (kA) 100
Short-circuit making capacity (400V) (kA) 105
Rated operational power AC-23A (400V) (Kw) 525
Rated fuse short-circuit
Back up fuse (A) 1000
R.M.S. value (kA) 100
Peak value (kA) 60
Mechanical endurance 4000
Electrical endurance 1000
Rated capacitor power at 400V kVAR 475
Power losses for pole (W) 24,3
Cable section mmq -
Bars dimension mm 2x50x6
