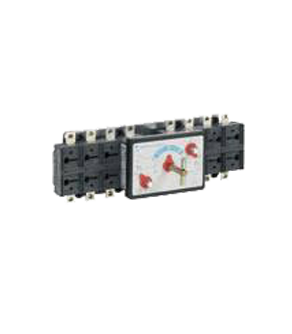

• MANUAL CHANGE-OVER SWITCHES 800A 3P
Item Name: MANUAL CHANGE-OVER SWITCHES 800A 3P
SKU 1: 150073
SKU 2: 0

Tipo CO5P 50 kA
Rated current (In)   800A
Rated insulation voltage c.a./AC (Ui) (V) 1000
c.c./DC (Ui) (V) 1500
Impulse withstand voltage (U imp) (kV) 12
Rated thermal current (Ith) (A) 800
Rated operational current (le) AC-21A/B 400V (A) 630/800
500V (A) 630/800
690V (A) 630/800
AC-22A/B 400V (A) 630/800
500V (A) 630/630
690V (A) 630/630
AC-23A/B 400V (A) 630/630
500V (A) 500/500
690V (A) 400/400
DC-21A/B(1) 220V (A) 630/800
420V (A) 630/800
560V (A) 630/800
DC-22A/B(1) 220V (A) 630/800
420V (A) 630/630
560V (A) 630/630
DC-23A/B(1) 220V (A) 630/630
420V (A) 630/630
560V (A) 630/630
Rated making capacity at 400V AC23 (A) 6300
Rated breaking capacity at 400V AC23 (A) 5040
Short-circuit withstand current 1 sec. (kA) 26,5
Short-circuit withstand current 0,25 sec (kA) 53
Short-circuit making capacity (400V) (kA) 30
Rated operational power AC-23A (400V) (Kw) 330
Rated fuse short-circuit
Back up fuse (A) 800
R.M.S. value (kA) 50
Peak value (kA) 50
Mechanical endurance 8000
Electrical endurance 1500/200
Rated capacitor power at 400V kVAR 300
Power losses for pole (W) 25,7
Cable section mmq 2x240
Bars dimension mm 2x40x6
