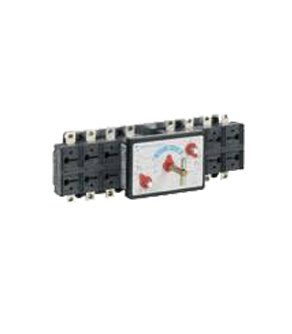

• MANUAL CHANGE-OVER SWITCHES 315A 4P
Item Name: MANUAL CHANGE-OVER SWITCHES 315A 4P
SKU 1: 130113
SKU 2: 0

Tipo CO3P
Rated current (In)   315A
Rated insulation voltage c.a./AC (Ui) (V) 1000
c.c./DC (Ui) (V) 1500
Impulse withstand voltage (U imp) (kV) 12
Rated thermal current (Ith) (A) 315
Rated operational current (le) AC-21A/B 400V (A) 315
500V (A) 315
690V (A) 315
AC-22A/B 400V (A) 315
500V (A) 315
690V (A) 315
AC-23A/B 400V (A) 315
500V (A) 250
690V (A) 200
DC-21A/B(1) 220V (A) 315
420V (A) 315
560V (A) 315
DC-22A/B(1) 220V (A) 315
420V (A) 315
560V (A) 315
DC-23A/B(1) 220V (A) 315
420V (A) 315
560V (A) 315
Rated making capacity at 400V AC23 (A) 3150
Rated breaking capacity at 400V AC23 (A) 2520
Short-circuit withstand current 1 sec. (kA) 13
Short-circuit withstand current 0,25 sec (kA) 26
Short-circuit making capacity (400V) (kA) 26
Rated operational power AC-23A (400V) (Kw) 165
Rated fuse short-circuit
Back up fuse (A) 315
R.M.S. value (kA) 50
Peak value (kA) 27
Mechanical endurance 8000
Electrical endurance 1500
Rated capacitor power at 400V kVAR 140
Power losses for pole (W) 5,9
Cable section mmq 240
Bars dimension mm 2x25x5
