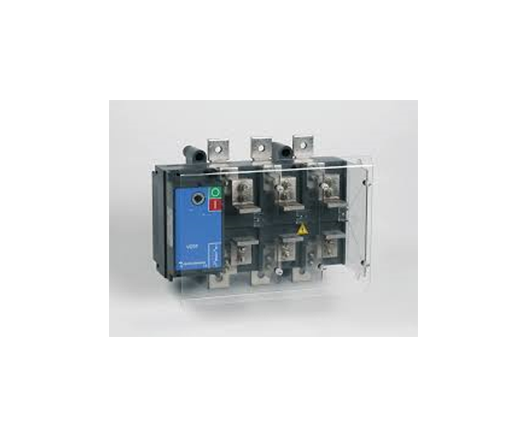

Type				VC5F
Rated current
				630A
Rated insulation voltage	c.a./AC	Ui	(V)	1000
	c.c./DC	Ui	(V)	1500
Rated thermal current		Ith	(A)	630
Impulse withstand voltage		Uimp	(kV)	12
Rated operational current	AC-21A	400V	(A)	630
		500V	(A)	630
		690V	(A)	630
	AC-22A	400V	(A)	630
		500V	(A)	630
		690V	(A)	630
	AC-23A	400V	(A)	630
		500V	(A)	500
		690V	(A)	400
	DC-21A (1)	48V	(A)	630
		110V	(A)	630
		220V	(A)	630
		400V	(A)	630
		500V	(A)	630
		600V	(A)	630
	DC-22A (1)	48V	(A)	630
		110V	(A)	630
		220V	(A)	630
		400V	(A)	630
		500V	(A)	630
		600V	(A)	630
	DC-23A (1)	48V	(A)	630
		110V	(A)	500
		220V	(A)	400
		400V	(A)	-
Rated operational power	AC-23A	400V	(KW)	330
Rated fuse short-circuit current
Back up fuse			(A)	630
R.M.S. value			(kA)	50
Peak value			(kA)	40
Rated making capacity 420V c.a. cosø 0,35(0,45°)			(A)	6300
Rated breaking capacity 420V c.a. cosø 0,35(0,45°)			(A)	5040
Rated making and breakikng capacity DC (230V L/R =15 ms)			(A)	1600
Rated capacitor power at 400V			(KVAr)	300
Mechanical endurance			n°	4000
Elecrtical endurance			n°	1000
Bars dimension			(mm)	2x40x6
Cable section			(mmq)	2x185
Power losses for pole			(W)	52,9
Operation torque			(Nm)	45
Net weight		3P	(Kg)	13
(1) Two poles in series		(2) Fuse not considered

---

---

---
