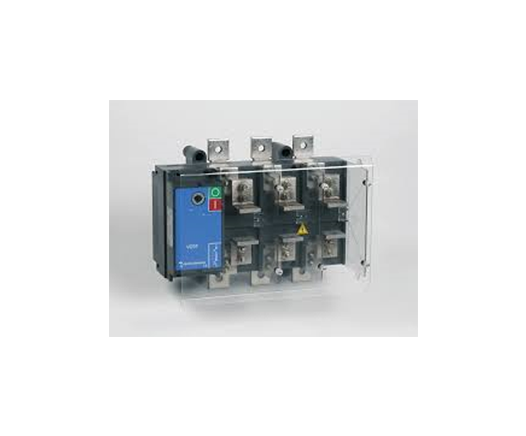

Type				VC2F
Rated current
				160A
Rated insulation voltage	c.a./AC	Ui	(V)	1000
	c.c./DC	Ui	(V)	1500
Rated thermal current		Ith	(A)	160
Impulse withstand voltage		Uimp	(kV)	12
Rated operational current	AC-21A	400V	(A)	160
		500V	(A)	160
		690V	(A)	160
	AC-22A	400V	(A)	160
		500V	(A)	160
		690V	(A)	160
	AC-23A	400V	(A)	160
		500V	(A)	125
		690V	(A)	100
	DC-21A (1)	48V	(A)	160
		110V	(A)	160
		220V	(A)	160
		400V	(A)	160
		500V	(A)	160
		600V	(A)	-
	DC-22A (1)	48V	(A)	160
		110V	(A)	160
		220V	(A)	160
		400V	(A)	160
		500V	(A)	160
		600V	(A)	-
	DC-23A (1)	48V	(A)	160
		110V	(A)	160
		220V	(A)	160
		400V	(A)	160
Rated operational power	AC-23A	400V	(KW)	85
Rated fuse short-circuit current
Back up fuse			(A)	160
R.M.S. value			(kA)	50
Peak value			(kA)	15
Rated making capacity 420V c.a. cosø 0,35(0,45°)			(A)	1600
Rated breaking capacity 420V c.a. cosø 0,35(0,45°)			(A)	1280
Rated making and breakikng capacity DC (230V L/R =15 ms)			(A)	400
Rated capacitor power at 400V			(KVAr)	70
Mechanical endurance			n°	8000
Elecrtical endurance			n°	1000
Bars dimension			(mm)	16x4
Cable section			(mmq)	70
Power losses for pole			(W)	5,5
Operation torque			(Nm)	12
Net weight		3P	(Kg)	1,9
(1) Two poles in series		(2) Fuse not considered

---

---

---
