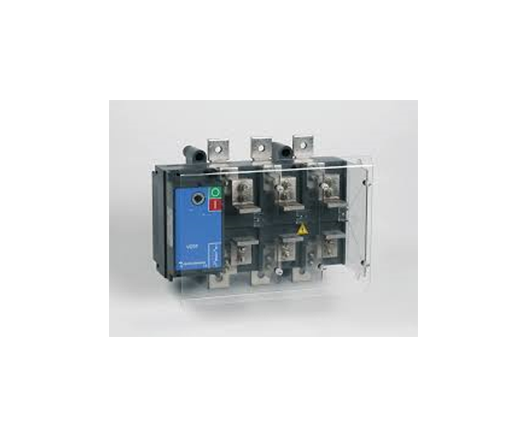

Type				VC2F
Rated current
				160A
Rated insulation voltage	c.a./AC	Ui	(V)	1000
	c.c./DC	Ui	(V)	1500
Rated thermal current		Ith	(A)	160
Impulse withstand voltage		Uimp	(kV)	12
Rated operational current	AC-21A	400V	(A)	160
		500V	(A)	160
		690V	(A)	160
	AC-22A	400V	(A)	160
		500V	(A)	160
		690V	(A)	160
	AC-23A	400V	(A)	160
		500V	(A)	125
		690V	(A)	100
	DC-21A (1)	48V	(A)	160
		110V	(A)	160
		220V	(A)	160
		400V	(A)	160
		500V	(A)	160
		600V	(A)	-
	DC-22A (1)	48V	(A)	160
		110V	(A)	160
		220V	(A)	160
		400V	(A)	160
		500V	(A)	160
		600V	(A)	-
	DC-23A (1)	48V	(A)	160
		110V	(A)	160
		220V	(A)	160
		400V	(A)	160
Rated operational power	AC-23A	400V	(KW)	85
Rated fuse short-circuit current
Back up fuse			(A)	160
R.M.S. value			(kA)	50
Peak value			(kA)	15
Rated making capacity 420V c.a. cosø 0,35(0,45°)			(A)	1600
Rated breaking capacity 420V c.a. cosø 0,35(0,45°)			(A)	1280
Rated making and breakikng capacity DC (230V L/R =15 ms)			(A)	400
Rated capacitor power at 400V			(KVAr)	70
Mechanical endurance			n°	8000
Elecrtical endurance			n°	1000
Bars dimension			(mm)	16x4
Cable section			(mmq)	70
Power losses for pole			(W)	5,5
Operation torque			(Nm)	12
Net weight		4P	(Kg)	2
(1) Two poles in series		(2) Fuse not considered

---

---

---
