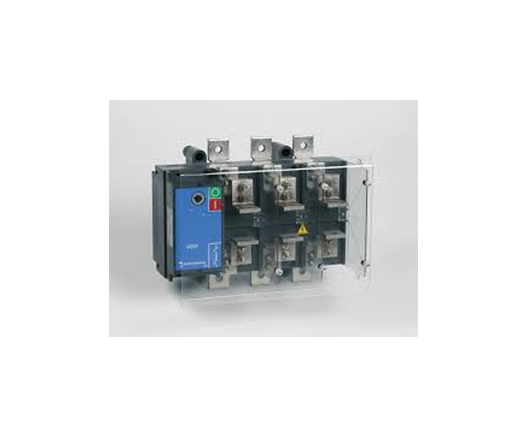

Type				VC1F
Rated current
				100A
Rated insulation voltage	c.a./AC	Ui	(V)	1000
	c.c./DC	Ui	(V)	1500
Rated thermal current		Ith	(A)	100
Impulse withstand voltage		Uimp	(kV)	8
Rated operational current	AC-21A	400V	(A)	100
		500V	(A)	100
		690V	(A)	100
	AC-22A	400V	(A)	80
		500V	(A)	80
		690V	(A)	80
	AC-23A	400V	(A)	80
		500V	(A)	63
		690V	(A)	45
	DC-21A (1)	48V	(A)	100
		110V	(A)	100
		220V	(A)	100
		400V	(A)	-
		500V	(A)	-
		600V	(A)	-
	DC-22A (1)	48V	(A)	80
		110V	(A)	80
		220V	(A)	80
		400V	-
		500V	(A)	-
		600V	(A)	-
	DC-23A (1)	48V	(A)	80
		110V	(A)	80
		220V	(A)	63
		400V	(A)	-
Rated operational power	AC-23A	400V	(KW)	42
Rated fuse short-circuit current
Back up fuse			(A)	80
R.M.S. value			(kA)	100
Peak value			(kA)	12
Rated making capacity 420V c.a. cosø 0,35(0,45°)			(A)	800*
Rated breaking capacity 420V c.a. cosø 0,35(0,45°)			(A)	640*
Rated making and breakikng capacity DC (230V L/R =15 ms)			(A)	180
Rated capacitor power at 400V			(KVAr)	45
Mechanical endurance			10000
Elecrtical endurance			n°	500
Bars dimension			(mm)	16x3
Cable section			(mmq)	35
Power losses for pole			(W)	3,1
Operation torque			(Nm)	8
Net weight		4P	(Kg)	1,1
(1) Two poles in series		(2) Fuse not considered

---

---

---
