| TECHNICAL DATA |
|
| Intended use |

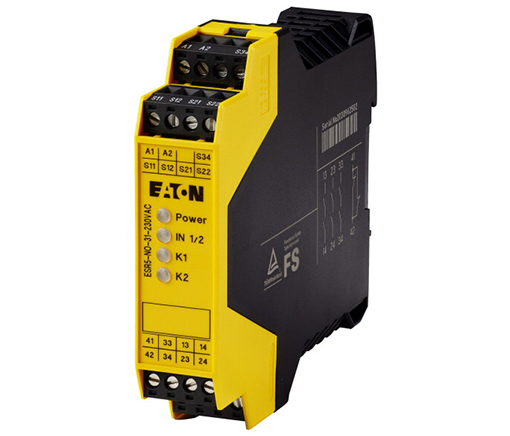

Safety relay for monitoring emergency stop and protective door switch. Module used to safely interrupt electrical circuits. |
| Policies List |
EMV 2004/108/EG, Maschinen 2006/42/EG |
| Standards |
EN ISO 13849-1:2008, EN 62061:2005+AC:2010, EN 61508, Parts 1-7:2001, EN 50178:1997, EN 60204-1:2006+A1:2009 |
| Dimensions (W x H x D) |
22.5 x 99 x 114.5 mm |
| Mounting width |
22.5 mm |
| Weight |
0,23 kg |
| Mounting position |
As required |
| Mounting |
Top-hat rail IEC/EN 60715, 35 mm |
| Connection type |
M3 screw terminals |
| Lifespan, mechanical [Operations] |
10 x 106 |
| Terminal capacity Solid |
1x (0.2 – 2.5) 2x (0.2 – 1) mm2 |
| Terminal capacity Flexible with ferrule |
1x (0.25 – 2.5) 2x (0.25 – 1) mm2 |
| Terminal capacity Solid or stranded |
24 - 12 AWG |
| Terminal screw Pozidriv screwdriver |
2 Size |
| Terminal screw Standard screwdriver |
0.6 x 3.5 mm |
| Terminal screw Max. tightening torque |
0.6 Nm |
| Stripping length |
7 mm |
| Material |
Housing: polyamide PA not reinforced Contacts: Material: silver tin oxide, gold plated (AgSnO2, 0.2 µm Au) |
| Duty factor |
100 % DF |
| Operating conditions Climatic environmental conditions Climatic proofing |
Cold to EN 60068-2-1 Dry heat to IEC 60068-2-2 Damp heat as per EN 60068-2-3 |
| Operating conditions Ambient temperature Operation [ϑ] |
-20 - +55 °C |
| Operating conditions Ambient temperature Storage [ϑ] |
-40 - +70 °C |
| Operating conditions Ambient temperature Condensation |
Non-condensing |
| Operating conditions Atmospheric conditions relative humidity |
Max. 75 % |
| Operating conditions Atmospheric conditions Air pressure (operation) |
795 - 1080 hPa |
| Operating conditions Atmospheric conditions Altitude [Above sea level] |
2000 m |
| Power loss [P] |
5.43 W |
