TECHNICAL DATA

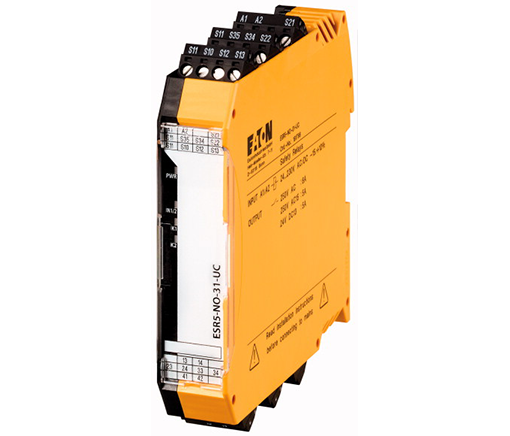

Intended use	Safety relay for monitoring one or two-channel signal generators and control of actuators. If the sensor circuit is interrupted, the safety relay switches to safe mode. Module used to safely interrupt electrical circuits.
Policies List	EMV 2004/108/EG, Maschinen 2006/42/EG
Standards	EN ISO 13849-1:2015, EN 62061:2005+A1:2013+A2:2015, EN 61508, Parts 1-7:2010, EN 50156-1:2015, Parts 1-2 EN 60947-5-1:2004+Cor:2005+A1:2009
Dimensions (W x H x D)	22.5 x 112.2 x 114.5 mm
Mounting width	22.5 mm
Weight	0,244 kg
Mounting position	As required
Mounting	Top-hat rail IEC/EN 60715, 35 mm
Connection type	M3 screw terminals
Operating conditions Ambient temperature Operation [ϑ]	-40 - +55 (observe derating) °C
Operating conditions Ambient temperature Storage [ϑ]	-40 - +85 °C
Operating conditions Ambient temperature Condensation	Non-condensing
Operating conditions Atmospheric conditions relative humidity	Max. 75 %
Operating conditions Atmospheric conditions Air pressure (operation)	795 - 1080 hPa
Operating conditions Atmospheric conditions Altitude [Above sea level]	2000 m

---

---

---
