 •Most of the "ASTRO" parameters can be set remotely using SMS queries. I.e. Output mode, Offset Hrs etc, UV, OV settings.
•Relay Output can be override remotely using SMS query.
•Energy Meter Functionality. Parameter like Load current, Supply voltage, Power, Energy can be known remotely.
•With the help of "Auto Error Code Update" following onsite error can be know remotely during output event.
-Under Voltage
-Over Voltage
-Over Current
-Output actuator short.
-Load Open

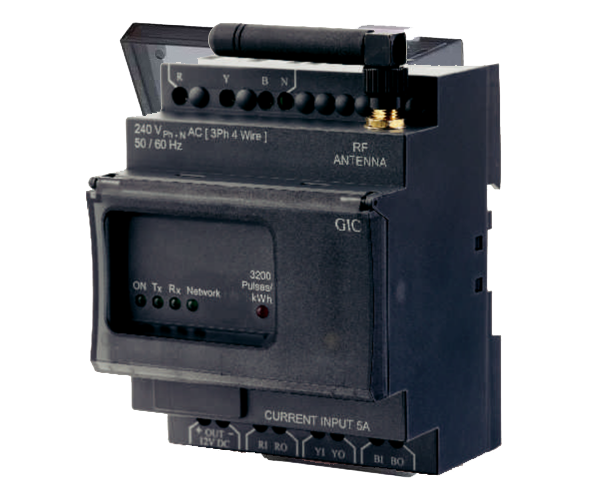

Cat. No.				19D20B00 (ERT 5)
Parameters
Supply Voltage				240 VAC (3 Phase, 4 Wire)
Supply Variation				-30% to +25%
Frequency				50/60 Hz
Active Phase selection				Yes
Operating Temperature				-15oC to + 60oC
GSM Type				Dual band 900 / 1800 GSM
GPRS Packet data				Class 10 coding scheme
AT cCommand set Suitabiltiy				N. A.
SMS Type Functionality				Data Call through GSM, SMS
SIM Holder				Text, Cell Broadcast
Antenna				Connected with the product
Antenna Impedance				50
Energy Measurement				Yes
Energy Measurement Accuracy				Class 0.5
Current Sensing Range				5A
CT Ratio				Settable up to 40
LED Indications				Tx, Rx, Network, Power, Pulse Out
Pulse Out rate				3200 pulses / kWh
Auxiliary Output				12 V DC, 200 mA
Mounting				Base / DIN Rail
Enclosure				Flame Retardant UL94-V0
Dimension (W x H x D) (in mm)				72X90X67
Weight (unpacked)				190 g
Certification

---

---

---
