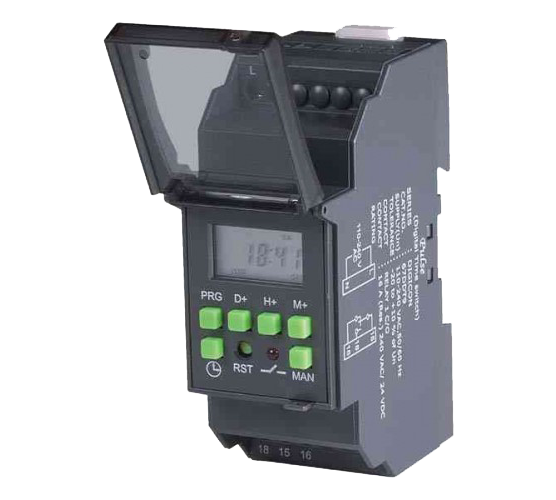

Cat. No.			67DDT0
Parameters
Supply Voltage					110 - 240 VAC
Supply Variation					-20 % to +10%
Frequency					50/60 Hz
Power Consumption (Max.)					6 VA
Number of Programs					25 ON/OFF Programs
Minimum Switching Time					1 min
Pulse Duration					N A
Number of Operating Modes					5
Description of Modes					- AUTO	-	Program Run
					- ON AUTO	-	Instant ON up to next Auto Event
					- AUTO OFF	-	Instant OFF up to next Auto Event
					- ON	-	Continuous ON
					- OFF	-	Continuous OFF
Display					3 Lines Text LCD
DST					Programmable
Clock Accuracy					± 2 s/day max. over the Operating Temperature range
Power Reserve from Factory					6 Years
	Relay Output				1 C/O
Output	Contact Rating				16A (For 'NO') & 5A (For 'NC') @ 240 VAC / 24 VDC (Resistive), Inductive (cos ø = 0.6):- 6 A @ 250 VAC
	Electrical Life				3x104
	Mechanical Life				5x104
Utilization Category		AC-15			Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3/1.5 A
		DC-13			Rated Voltage (Ue): 24/125/250 V, Rated Current (Ie): 2.0/0.22/0.11 A
Operating Temperature					-10°C to + 55°C
Storage Temperature					-10°C to + 60°C
Humidity (Non Condensing)					95% (Rh)
LED Indication					Red LED	Relay ON
Enclosure					Flame Retardant UL94-V0
Dimension (W x H x D) (in mm)					36X90X65
Weight (unpacked) Approx.					110 g
Mounting					Base / DIN rail
Degree of Protection					IP 20 for Terminals, IP 40 for Enclosure

EMI / EMC
Harmonic Current Emissions	IEC 61000-3-2
ESD	IEC 61000-4-2
Radiated Susceptibility	IEC 61000-4-3
Electrical Fast Transients	IEC 61000-4-4
Surges	IEC 61000-4-5
Conducted Susceptibility	IEC 61000-4-6
Voltage Dips & Interruptions (AC)	IEC 61000-4-11
Conducted Emission	CISPR 14-1
Radiated Emission	CISPR 14-1
Environmental
Cold Heat	IEC 60068-2-1
Dry Heat	IEC 60068-2-2
Vibration	IEC 60068-2-6
Repetitive Shock	IEC 60068-2-27
Non-Repetitive Shock	IEC 60068-2-27

---

---

---
