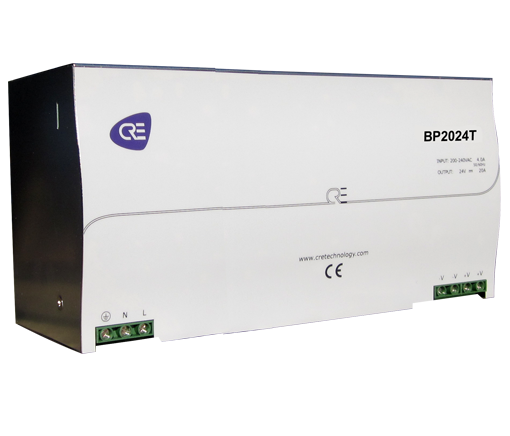

REFERENCES	UNIT	BP 2024T
OUTPUT CURRENT	A	20
OUTPUT VOLTAGE	VDC	24-28
DC VOLTAGE ADJUSTABLE	.	yes
INPUT VOLTAGE RANGE	VAC	304~550
INPUT fREQUENCY RANGE	Hz	47-63
EffICIENCY (TYPICAL)	%	89
WORKING TEMPERATURE	°C	- 20/ +70
STORAGE TEMPERATURE	°C	-40 / +85
WIDTH	mm	227
HEIGHT	mm	125.2
DEPTH	mm	100
WEIGHT	kg	2.5
fAILURE RELAY	.	NO
BOOST MODE (ACTIVATED BY EXTERNAL CONTACT)		NO

---

---

---
