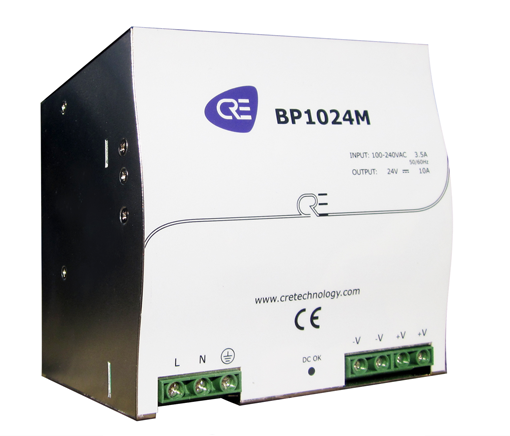

REFERENCES	UNIT	BP 1024M
OUTPUT CURRENT	A	10
OUTPUT VOLTAGE	VDC	24-28
DC VOLTAGE ADJUSTABLE	.	yes
INPUT VOLTAGE RANGE	VAC	85~264
INPUT fREQUENCY RANGE	Hz	47-63
EffICIENCY (TYPICAL)	%	84
WORKING TEMPERATURE	°C	- 10/ +70
STORAGE TEMPERATURE	°C	-20 / +85
WIDTH	mm	125.5
HEIGHT	mm	125.2
DEPTH	mm	100
WEIGHT	kg	1.2
fAILURE RELAY	.	NO
BOOST MODE (ACTIVATED BY EXTERNAL CONTACT)		NO

---

---

---
