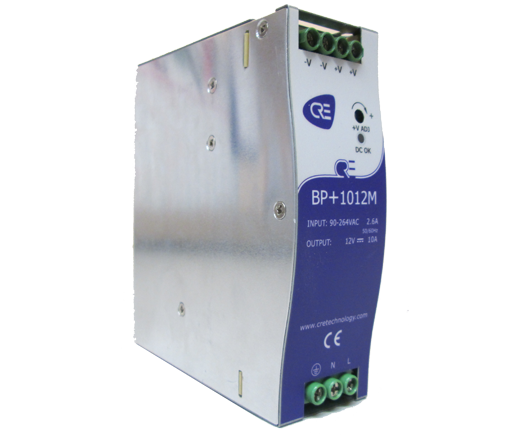

REFERENCES	UNIT	BP+ 1012M
OUTPUT CURRENT	A	10
OUTPUT VOLTAGE	VDC	12_15
DC VOLTAGE ADJUSTABLE	.	yes
INPUT VOLTAGE RANGE	VAC	90 ~ 264
INPUT fREQUENCY RANGE	Hz	47 - 63
EffICIENCY (TYPICAL)	%	84
WORKING TEMPERATURE	°C	-20 / +70
STORAGE TEMPERATURE	°C	-40 / +85
WIDTH	mm	40
HEIGHT	mm	125.2
DEPTH	mm	113.5
WEIGHT	kg	0.57
fAILURE RELAY	.	No
BOOST MODE (ACTIVATED BY EXTERNAL CONTACT)		No

---

---

---
