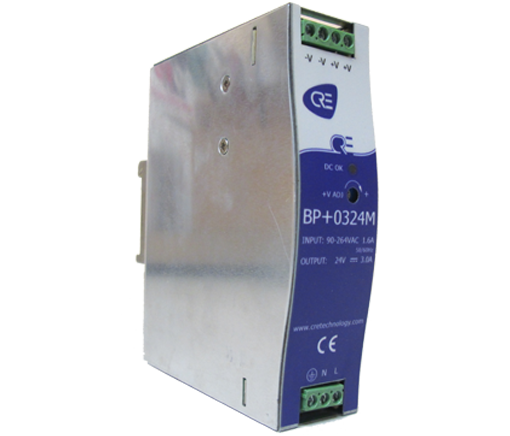

REFERENCES	UNIT	BP+ 0324M
OUTPUT CURRENT	A	3
OUTPUT VOLTAGE	VDC	24 - 28
DC VOLTAGE ADJUSTABLE	.	yes
INPUT VOLTAGE RANGE	VAC	90 ~ 264
INPUT fREQUENCY RANGE	Hz	47 - 63
EffICIENCY (TYPICAL)	%	87
WORKING TEMPERATURE	°C	-20 / +70
STORAGE TEMPERATURE	°C	-40 / +85
WIDTH	mm	32
HEIGHT	mm	125.2
DEPTH	mm	102
WEIGHT	kg	0.51
fAILURE RELAY	.	No
BOOST MODE (ACTIVATED BY EXTERNAL CONTACT)		No

---

---

---
