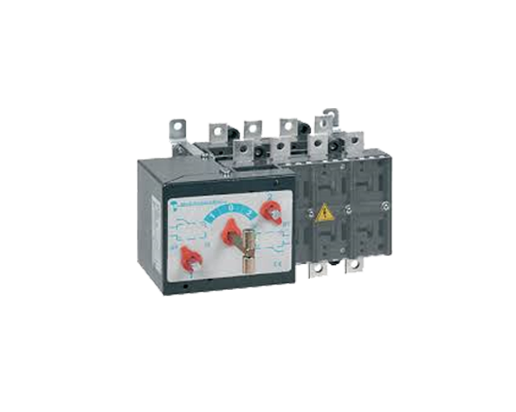

SD MANUAL CHANGE-OVER SWITCHES 400A 4P
Item Name:
SD MANUAL CHANGE-OVER SWITCHES 400A 4P
SKU 1:
150178
SKU 2:
0
Category:
CSP TWO LAYERS CHANGE-OVER SWITCHES
Brand:
Technoelectric
Type
CS5P 35 kA
Rated current
(In)
800A
Rated insulation voltage
c.a./AC
(Ui)
(V)
1000
c.c./DC
(Ui)
(V)
1500
Impulse withstand voltage
(U imp)
(kV)
12
Rated thermal current
(Ith)
(A)
800
Rated operational current (le)
AC-21A/B
400V
(A)
800
500V
(A)
800
690V
(A)
800
AC-22A/B
400V
(A)
800
500V
(A)
800
690V
(A)
800
AC-23A/B
400V
(A)
800
500V
(A)
500
690V
(A)
400
DC-21A/B(1)
220V
(A)
800
420V
(A)
-
560V
(A)
-
DC-22A/B(1)
220V
(A)
800
420V
(A)
-
560V
(A)
-
DC-23A/B(1)
220V
(A)
500
420V
(A)
-
560V
(A)
-
Rated making capacity at 400V AC23
(A)
8000
Rated breaking capacity at 400V AC23
(A)
6400
Short-circuit withstand current 1 sec.
(kA)
35
Short-circuit withstand current 0,25 sec
(kA)
70
Short-circuit making capacity
(400V)
(kA)
73,5
Rated operational power AC-23A
(400V)
(Kw)
420
Rated fuse short-circuit
Back up fuse
(A)
800
R.M.S. value
(kA)
100
Peak value
(kA)
50
Mechanical endurance
n°
7000
Electrical endurance
n°
1000
Rated capacitor power at 400V
kVAR
380
Power losses for pole
(W)
17,5
Cable section
mmq
2x240
Bars dimension
mm
2x50x5
Available In Stock
