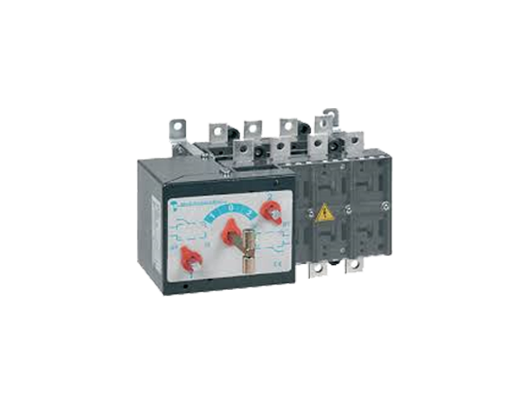

Type				CS2P
Rated current		(In)		200A
Rated insulation voltage	c.a./AC	(Ui)	(V)	1000
	c.c./DC	(Ui)	(V)	1500
Impulse withstand voltage		(U imp)	(kV)	12
Rated thermal current		(Ith)	(A)	200
Rated operational current (le)	AC-21A/B	400V	(A)	200
		500V	(A)	200
		690V	(A)	200
	AC-22A/B	400V	(A)	200
		500V	(A)	200
		690V	(A)	200
	AC-23A/B	400V	(A)	200
		500V	(A)	160
		690V	(A)	125
	DC-21A/B(1)	220V	(A)	200
		420V	(A)	200
		560V	(A)	-
	DC-22A/B(1)	220V	(A)	200
		420V	(A)	200
		560V	(A)	-
	DC-23A/B(1)	220V	(A)	200
		420V	(A)	200
		560V	(A)	-
Rated making capacity at 400V AC23			(A)	2000
Rated breaking capacity at 400V AC23			(A)	1600
Short-circuit withstand current 1 sec.			(kA)	8
Short-circuit withstand current 0,25 sec			(kA)	16
Short-circuit making capacity		(400V)	(kA)	13,5
Rated operational power AC-23A		(400V)	(Kw)	105
Rated fuse short-circuit
Back up fuse			(A)	200
R.M.S. value			(kA)	100
Peak value			(kA)	20
Mechanical endurance			n°	10000
Electrical endurance			n°	2000
Rated capacitor power at 400V			kVAR	90
Power losses for pole			(W)	2,4
Cable section			mmq	120
Bars dimension			mm	20x5

---

---

---
