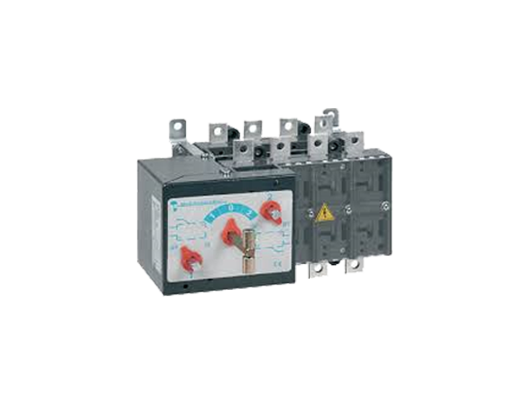

Type				CS1P
Rated current		(In)		160A
Rated insulation voltage	c.a./AC	(Ui)	(V)	1000
	c.c./DC	(Ui)	(V)	1500
Impulse withstand voltage		(U imp)	(kV)	8
Rated thermal current		(Ith)	(A)	160
Rated operational current (le)	AC-21A/B	400V	(A)	125/160
		500V	(A)	125/160
		690V	(A)	125/160
	AC-22A/B	400V	(A)	125/160
		500V	(A)	125/125
		690V	(A)	125/125
	AC-23A/B	400V	(A)	125/125
		500V	(A)	100/100
		690V	(A)	80/80
	DC-21A/B(1)	220V	(A)	125/160
		420V	(A)	-
		560V	(A)	-
	DC-22A/B(1)	220V	(A)	125/125
		420V	(A)	-
		560V	(A)	-
	DC-23A/B(1)	220V	(A)	80/80
		420V	(A)	-
		560V	(A)	-
Rated making capacity at 400V AC23			(A)	1250
Rated breaking capacity at 400V AC23			(A)	1000
Short-circuit withstand current 1 sec.			(kA)	5
Short-circuit withstand current 0,25 sec			(kA)	10
Short-circuit making capacity		(400V)	(kA)	7,5
Rated operational power AC-23A		(400V)	(Kw)	65
Rated fuse short-circuit
Back up fuse			(A)	160
R.M.S. value			(kA)	50
Peak value			(kA)	16
Mechanical endurance			n°	10000
Electrical endurance			n°	2000
Rated capacitor power at 400V			kVAR	50
Power losses for pole			(W)	2,7
Cable section			mmq	70
Bars dimension			mm	16x4

---

---

---
