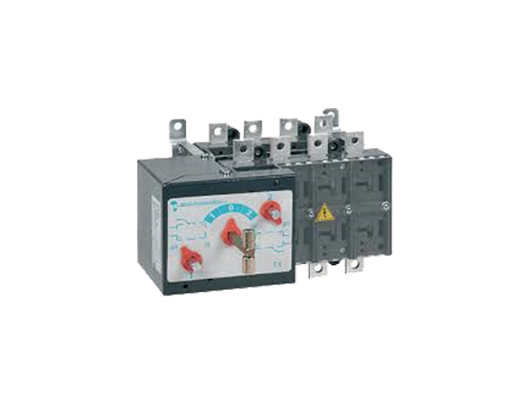

Type				CS3P
Rated current		(In)		400A
Rated insulation voltage	c.a./AC	(Ui)	(V)	1000
	c.c./DC	(Ui)	(V)	1500
Impulse withstand voltage		(U imp)	(kV)	12
Rated thermal current		(Ith)	(A)	400
Rated operational current (le)	AC-21A/B	400V	(A)	400
		500V	(A)	400
		690V	(A)	400
	AC-22A/B	400V	(A)	400
		500V	(A)	400
		690V	(A)	400
	AC-23A/B	400V	(A)	400
		500V	(A)	315
		690V	(A)	250
	DC-21A/B(1)	220V	(A)	250/315
		420V	(A)	400
		560V	(A)	400
	DC-22A/B(1)	220V	(A)	400
		420V	(A)	400
		560V	(A)	400
	DC-23A/B(1)	220V	(A)	400
		420V	(A)	400
		560V	(A)	400
Rated making capacity at 400V AC23			(A)	4000
Rated breaking capacity at 400V AC23			(A)	3200
Short-circuit withstand current 1 sec.			(kA)	13
Short-circuit withstand current 0,25 sec			(kA)	26
Short-circuit making capacity		(400V)	(kA)	26
Rated operational power AC-23A		(400V)	(Kw)	210
Rated fuse short-circuit
Back up fuse			(A)	400
R.M.S. value			(kA)	50
Peak value			(kA)	30
Mechanical endurance			n°	8000
Electrical endurance			n°	1500
Rated capacitor power at 400V			kVAR	180
Power losses for pole			(W)	9,4
Cable section			mmq	240
Bars dimension			mm	2x25x5

---

---

---
