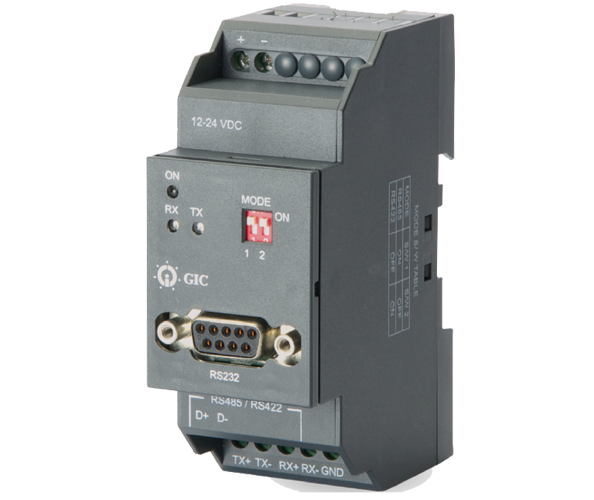

RS 232 to RS485/RS422 converter
|
اسم الصنف: RS 232 to RS485/RS422 converter
رقم الموديل 1: 28B21A0
رقم الموديل 2: 0
|
|
• LED Indication for Transmit,
• RS232 with DB9 Female connector Receive signal communication traffic.
• Auto direction control for RS485-2W transmission.
• Input power supply range 9 to 26.4 VDC
• Galvanic Isolation of 1500V for RS485/RS422.
• 2M enclosure with DIN Rail mounting.
• Supports Baud rate up to 230Kbps.
• Internal 15 kV ESD protection both
RS232 and RS485/RS422
|
Cat. No.
|
28B21A0
|
|
Parameters
|
|
|
|
|
|
|
|
|
|
|
RS232 Port
|
|
|
|
|
|
|
|
|
|
|
Connector
|
D type 9 pin Female
|
|
|
Serial line protection
|
Internal 15 kV ESD
|
|
|
Isolated RS485/RS422 Port
|
|
|
|
|
|
|
|
|
|
|
No. of Ports
|
1
|
|
|
|
|
|
|
|
|
|
RS422
|
TX+, TX-, RX+, RX
|
|
|
|
|
|
|
RS485
|
D+, D-
|
|
|
|
|
|
Serial line Protection
|
15kV ESD
|
|
|
|
|
Serial Communication Parameter
|
|
|
|
|
|
|
|
|
|
|
Isolation
|
1500 V Galvanic
|
|
|
Parity
|
None, Even, Odd, Space, Mark
|
|
Data Bits
|
5,6,7,8
|
|
|
|
|
|
|
|
|
|
Stop Bits
|
1,1,5,2
|
|
|
|
|
|
|
|
|
|
Flow Control
|
None, XON/XOFF,
|
|
|
|
Speed
|
300 bps to 230 Kbps
|
|
|
|
LED Indication
|
TX, RX LED indication
|
|
|
|
Input Supply Voltage
|
9.4 - 26.4 VDC
|
|
|
Power Consumption
|
1W
|
|
|
Operating Temperature
|
0O C to + 60O C
|
|
Storage Temperature
|
-25O C to + 70O C
|
|
|
|
Humidity
|
95% (Rh)
|
|
|
|
Enclosure
|
Flame Retardant UL 94-V0
|
|
|
|
Dimension (W x H x D) (in mm)
|
36 X 90 X 52.3
|
|
|
Weight (unpacked) Approx.
|
100 g
|
|
|
Mounting
|
Base / DIN rail
|
|
|
Degree of Protection
|
IP 20 for Terminals, IP 40 for Enclosure
|
|
|
|
|
Certification
|
.png)
|
|
|
|
|
|
|
|
|
Function and Application
|
This converter allows to interface any device using RS232 serial link to RS485/RS422
|
|
|
link. The RS485 specification allows to network up to 32 Notes on the same lines, at speeds up to 10
|
|
|
Mbps to distances of 4,000 feet (1200 meters). RS485/RS422 links are much used in industrial process
|
|
|
control where reliability is important.
|
