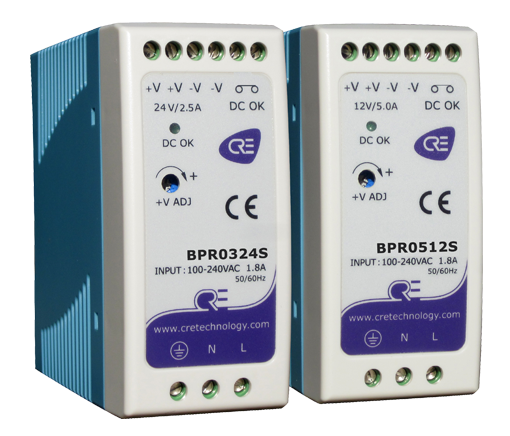

REFERENCES	UNIT	BPR 0324S
OUTPUT CURRENT	A	2.5
OUTPUT VOLTAGE	VDC	24 - 28
DC VOLTAGE ADJUSTABLE	.	yes
INPUT VOLTAGE RANGE	VAC	85 ~264
INPUT fREQUENCY RANGE	Hz	47 - 63
EffICIENCY (TYPICAL)	%	88
WORKING TEMPERATURE	°C	-20 / +70
STORAGE TEMPERATURE	°C	-40 / +85
WIDTH	mm	40
HEIGHT	mm	90
DEPTH	mm	100
WEIGHT	kg	0.33
fAILURE RELAY	.	yes
BOOST MODE (ACTIVATED BY EXTERNAL CONTACT)		NO

---

---

---
