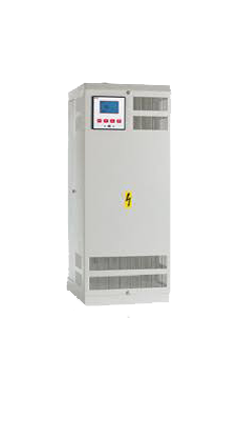

M27540
|
اسم الصنف: M27540
رقم الموديل 1: M27540
رقم الموديل 2: 0
|
|
Range: ALPIMATIC
Type: Standard
Nominal power: 275 kVAr
Steps: (25 + 50) + 50 + 2 x 75 kVAr
Nominal voltage: 400 V - 50 Hz -
Max permissible voltage: 470 V (capacitor)
Insulation class: 6 / 25 kV (capacitor)
Harmonic level: THDU < 2% & THDI < 5%SH/ST ≤ 15%
Loss factor: 2 W / kVAr
Temperature class: -10°C / +45°C
Average over 24H:+40°C
Annual average:+35°C
Weight: 190 kg
Dimensions (W x D x H mm): 600 x 500 x 1400
Type: Indoor
Storage: -30°C / +60°C
Environment: Dry,Dust-free,Non-corrosive,Vibration-free
Standard: IEC 61439-1 and 2
متوفر
