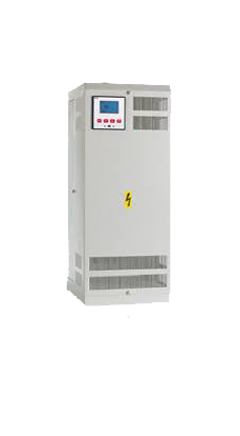

Range: ALPIMATIC
Type: Standard
Nominal power:  250 kVAr
Steps: 2 x 50 + 2 x 75 kVAr
Nominal voltage: 400 V - 50 Hz -
Max permissible voltage:  470 V (capacitor
Insulation class: 6 / 25 kV (capacitor)
Harmonic level:  THDU < 2% & THDI < 5%SH/ST ≤ 15%
Loss factor:  2  W / kVAr
Temperature class: -10°C  / +45°C
Average over 24H: +40°C
Annual average:  +35°C
Weight:  170 kg
Dimensions (W x D x H mm):  600 x 500 x 1400
Type:  Indoor
Storage:  -30°C / +60°C
Environment: Dry,Dust-free,Non-corrosive,Vibration-free
Standard:  IEC 61439

---

---

---
